Butterfly Valves | SKU: VFM-080VE-000G

VFM-080VE-000G | Johnson Controls | Control Valves & Actuators

Name: VFM-080VE-000G
Brand: Johnson Controls
SKU: JCI-VFM080VE000G
Price: 4745.31 USD
Availability: InStock

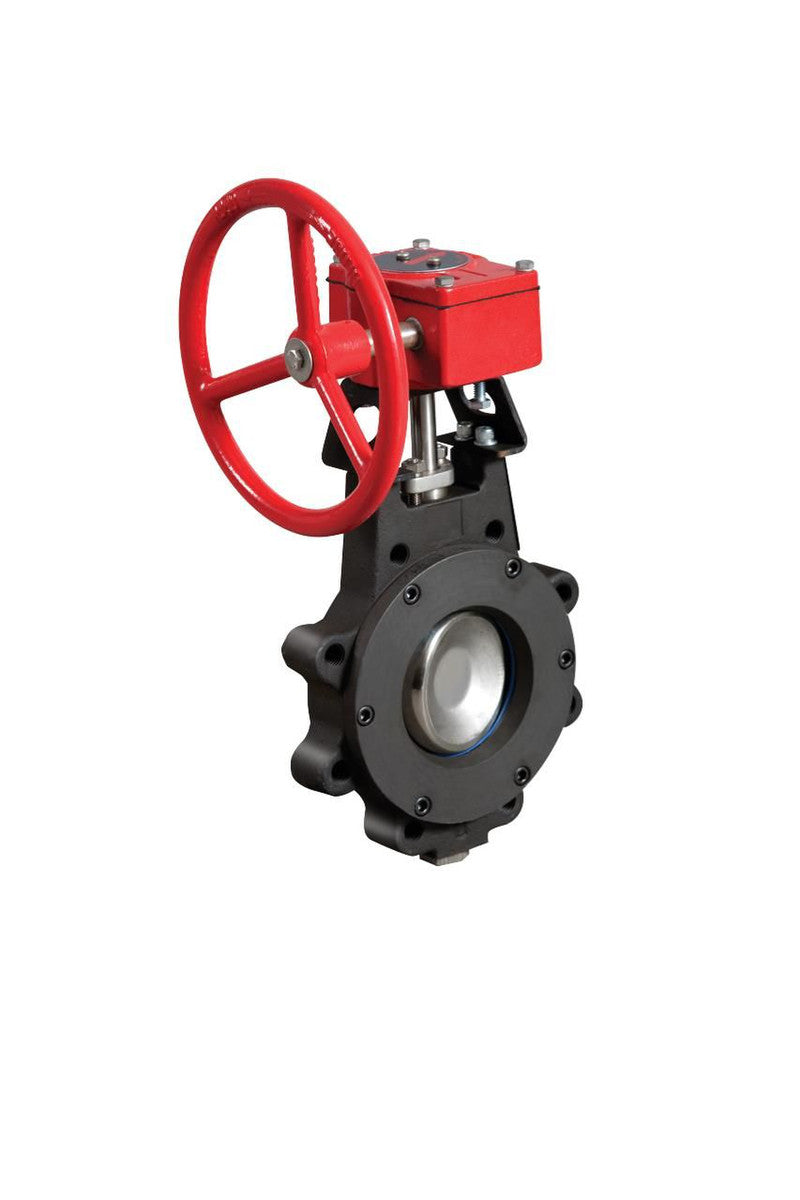

Butterfly Valve, 8 Inch 2-Way

$4,745.31 $7,592.50

Shipping calculated at checkout.

Available to order

Lead time: 13 days

FREE SHIPPING

Description

VF Series Two-Way, Manually Operated, High-Pressure, High-Temperature Butterfly Valve Assemblies are specifically designed for a wide range of HVAC applications, including two-position and modulating/throttling control of hot water, chilled water, condenser water, and steam.

Product Specifications

Name	Value
Ansi class	Class 150
Application	High-Pressure, High-Temperature
Data Sheet	Download
Flow coefficient	2800 Cv
Material	Carbon Steel
Operator type	Gear-Operated Hand Wheel
Pattern	2 Way
Product category	Control Valves & Actuators
Product subcategory	Butterfly Valves
Series	Johnson Controls
Short desc	Butterfly Valve, 8 Inch 2-Way
Size	8 in
Supplier part number	VFM-080VE-000G
Type	Manually Operated Butterfly Valve
Valve trim	Stainless Steel

Features and Benefits

{'Features_and_Benefits_1': 'Compatible with all types of ANSI 150/300 slipon and weld-neck flanges', 'Features_and_Benefits_2': 'High-pressure, high-temperature design', 'Features_and_Benefits_3': 'Bidirectional shutoff, dead-end service', 'Features_and_Benefits_4': 'Live-loaded seat design with fully encased O-ring', 'Features_and_Benefits_5': 'Double offset stem design', 'Features_and_Benefits_6': 'Direct actuator-to-stem mounting'}
