Control Valves & Actuators | SKU: VA9310-AUA-2

VA9310-AUA-2 | Johnson Controls | Control Valves & Actuators

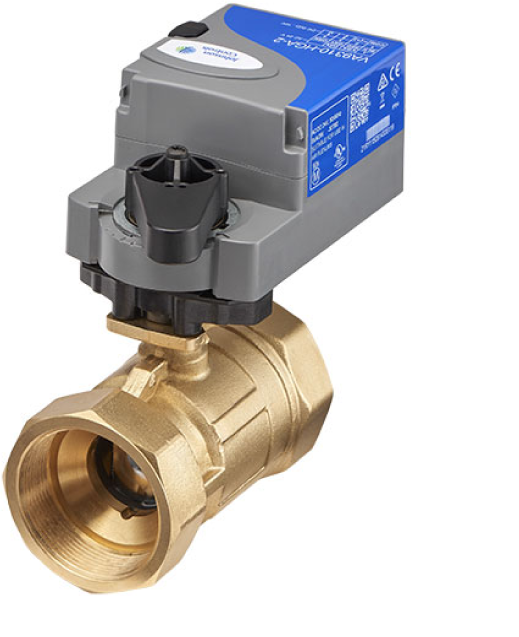

Name: VA9310-AUA-2
Brand: Johnson Controls
SKU: JCI-VA9310AUA2
Price: 314.46 USD
Availability: InStock

VA9300 Series Electric Valve Actuator, On/Off, Floating, Non-Spring Return, 120 VAC, 90 Inch-lbs, Halogen-Free Cable, IP54/NEMA 5

$314.46 $503.13

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The VA9300 Series Electric Non-Spring Return Actuators are direct mount actuators for valves with ISO Flange mounting such as the VG1000 Series Valves. The series provides Automatic Signal Input Detection which allows automatic recognition of input signals for on/off, floating control. An optional line voltage auxiliary switch kit can be field installed to indicate an end-stop position or perform switching functions within the selected rotation range. The VA9300 Actuators also feature a NEMA 4X weather shield for applications in harsh environments.

Product Specifications

Name	Value
Category	Valve
Connection type	Halogen-Free Cable
Control type	On/Off (Floating)
Data Sheet	Download
Installation Guide	Download
Enclosure type	IP54/NEMA 5
Fail safe	Non Fail-Safe
Height	0.0
Length	0.0
Power supply	120 VAC
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Actuators
Rotation	95 Deg.
Series	Johnson Controls
Short desc	VA9300 Series Electric Valve Actuator, On/Off, Floating, Non-Spring Return, 120 VAC, 90 Inch-lbs, Halogen-Free Cable, IP54/NEMA 5
Supplier part number	VA9310-AUA-2
Torque	90 in-lbs (10 Nm)
Type	Electric Valve Actuator
Variant weight	0.1
Width	0.0

Features and Benefits

{'Features_and_Benefits_1': 'Automatic Signal Input Detection, On/Off, Floating Control with Adjustable Span and Offset', 'Features_and_Benefits_2': 'Line Voltage On/Off and Floating Models', 'Features_and_Benefits_3': 'High Speed On/Off and Floating Models', 'Features_and_Benefits_4': 'Easy Conversion to Valve Operation - Same Actuator Used for Dampers or Valves', 'Features_and_Benefits_5': 'Optional Accessory Kit', 'Features_and_Benefits_6': 'Backward Compatible Auxiliary Switch Kits and Auxiliary Potentiometer', 'Features_and_Benefits_7': 'Self-Calibrating Input Signal to Adjust Stroke', 'Features_and_Benefits_8': 'Electronic Stall Detection', 'Features_and_Benefits_9': 'Microprocessor-Controlled Brushless DC Motor', 'Features_and_Benefits_10': 'Mode Configuration Switches'}
