Control Valves & Actuators | SKU: VA9208-BDC-3

VA9208-BDC-3 | Johnson Controls | Control Valves & Actuators

Name: VA9208-BDC-3
Brand: Johnson Controls
SKU: JCI-VA9208BDC3
Price: 446.92 USD
Availability: InStock

VA9208 Series Electric Actuator, On/Off, Spring Return, 230 VAC, 70 Inch-lbs, Halogen-Free Cable, IP54, NEMA 2

$446.92 $715.07

Shipping calculated at checkout.

Available to order

Lead time: 13 days

FREE SHIPPING

Description

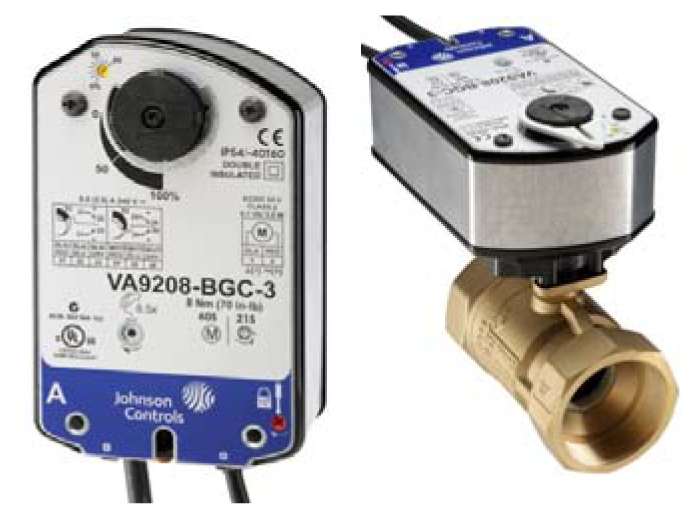

The VA9208-xxx-xx Series electric spring return valve actuators are direct-mount valve actuators. These bidirectional actuators are used to provide accurate positioning on Johnson Controls VG1000 Series 1 1/4, 1 1/2 and 2 Inch (DN32, DN40, and DN50) ball valves in HVAC applications. A mechanical spring return system provides rated torque with and without power applied to the actuator. Optional line voltage auxiliary switches indicate an end-stop position or perform switching functions within the selected rotation range.

Product Specifications

Name	Value
Connection type	Halogen-Free Cable
Control type	On/Off
Data Sheet	Download
Installation Instructions	Download
Enclosure type	IP54, NEMA 2
Fail safe	Spring Return
Power consumption holding	0.03 A
Power consumption running	0.04 A
Power supply	230 VAC
Product category	Control Valves & Actuators
Product subcategory	Spring Return Valve Actuators
Rotation	95 Deg.
Series	Johnson Controls
Short desc	VA9208 Series Electric Actuator, On/Off, Spring Return, 230 VAC, 70 Inch-lbs, Halogen-Free Cable, IP54, NEMA 2
Supplier part number	VA9208-BDC-3
Torque	70 in-lbs (8 Nm)
Type	Electric Valve Actuator

Features and Benefits

{'Features_and_Benefits_1': 'Direct Mounting with a Single Screw', 'Features_and_Benefits_2': 'Electronic Stall Detection', 'Features_and_Benefits_3': 'Double-Insulated Construction', 'Features_and_Benefits_4': 'Integral Cables with Colored and Numbered Conductors', 'Features_and_Benefits_5': 'Integral Connectors for 3/8 Inch (10mm) Flexible Metal Conduit (FMC)', 'Features_and_Benefits_6': 'Optional Integrated Auxiliary Switches', 'Features_and_Benefits_7': 'Plenum-Rated Models', 'Features_and_Benefits_8': 'Optional Thermal Barrier', 'Features_and_Benefits_9': 'Available Weather Shield for Field Mounting', 'Features_and_Benefits_10': '5-Year Warranty'}
