Control Valves & Actuators  | SKU: VA9104-GGA-3S

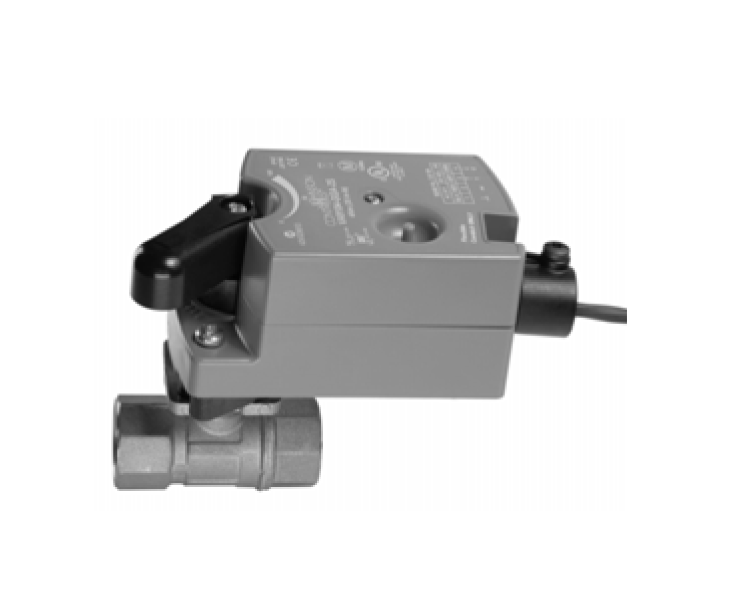

VA9104-GGA-3S | Johnson Controls | Electric Actuator 35#; NSR; 0-10vdc; 24v

Johnson Controls, VA9104 Series Electric Valve Actuator, Proportional, Non-Spring Return, 24 VAC, 35 Inch-lbs, Screw Terminal, IP40, NEMA 1 VA9104-GGA-3S
$254.58 $407.59
Shipping calculated at checkout.

Delivery

In stock (7 units)

Usually ships next day

Calculated at checkout
Save Product

Description

The VA9104 Series Actuators are direct-mount, non-spring return electric valve actuators that operate on 24 VAC power. Use these synchronous motors or stepper motors (for line voltage models) driven actuators to provide accurate positioning on Johnson Controls VG1000 Series DN15, DN20, and DN25 (1/2, 3/4 and 1 Inch) ball valves in HVAC applications. The VA9104 Series Electric Non-Spring Return Actuators provide a running torque of 35 Inch-lbs (4 Nm). The nominal travel time is 60 seconds at 60 Hz for 90 deg of rotation.

Product Specifications

Name Value
Category Valve
Connection type Screw Terminal
Control type Proportional
Description The VA9104 Series Actuators are direct-mount, non-spring return electric valve actuators that operate on 24 VAC power. Use these synchronous motors or stepper motors (for line voltage models) driven actuators to provide accurate positioning on Johnson Controls VG1000 Series DN15, DN20, and DN25 (1/2, 3/4 and 1 Inch) ball valves in HVAC applications. The VA9104 Series Electric Non-Spring Return Actuators provide a running torque of 35 Inch-lbs (4 Nm). The nominal travel time is 60 seconds at 60 Hz for 90 deg of rotation.
Data Sheet Download PDF
Installation Guide Download PDF
Display name 1 Data Sheet
Display name 2 Installation Instructions
Enclosure type IP40, NEMA 1
Fail safe Non Fail-Safe
Features and benefits {'Features_and_Benefits_1': '35 dBA Maximum Audible Noise Rating', 'Features_and_Benefits_2': 'Synchronous Drive', 'Features_and_Benefits_3': '100,000 Cycle Rating', 'Features_and_Benefits_4': 'Direct Mounting with Single Screw', 'Features_and_Benefits_5': 'Manual Override', 'Features_and_Benefits_6': 'Available Weather Shield for Field Mounting', 'Features_and_Benefits_7': 'Optional M9000-561 Thermal Barrier', 'Features_and_Benefits_8': '5-Year Warranty', 'Features_and_Benefits_9': 'Certifications: UL, cUL Listed, C-Tick Mark'}
Most popular Yes
P21 delete flag false
Power supply 24 VAC
Product category Control Valves & Actuators
Product subcategory Non-Spring Return Valve Actuators
Restricted class id NULL
Restricted item false
Rotation 93 Deg. +/-3 Deg., CW or CCW
Series Johnson Controls
Short desc Johnson Controls, VA9104 Series Electric Valve Actuator, Proportional, Non-Spring Return, 24 VAC, 35 Inch-lbs, Screw Terminal, IP40, NEMA 1 VA9104-GGA-3S
Sku JCI-VA9104GGA3S
Supplier part number VA9104-GGA-3S
Torque 35 in-lbs
Type Electric Valve Actuator
Ultra store sync us Yes
Vendor active Y
Yorkland id VA9104-GGA-3S

Features and Benefits

{'Features_and_Benefits_1': '35 dBA Maximum Audible Noise Rating', 'Features_and_Benefits_2': 'Synchronous Drive', 'Features_and_Benefits_3': '100,000 Cycle Rating', 'Features_and_Benefits_4': 'Direct Mounting with Single Screw', 'Features_and_Benefits_5': 'Manual Override', 'Features_and_Benefits_6': 'Available Weather Shield for Field Mounting', 'Features_and_Benefits_7': 'Optional M9000-561 Thermal Barrier', 'Features_and_Benefits_8': '5-Year Warranty', 'Features_and_Benefits_9': 'Certifications: UL, cUL Listed, C-Tick Mark'}
