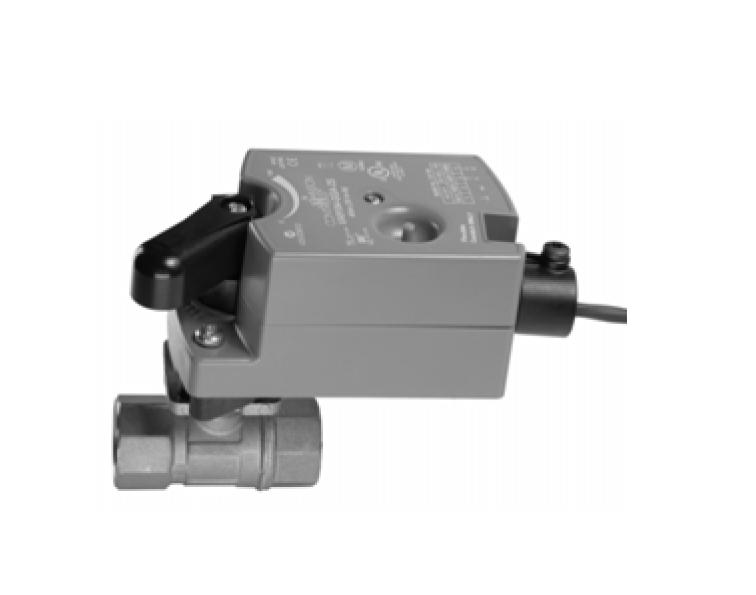

VA9104-GGA-2S | Johnson Controls | Control Valves & Actuators

The VA9104 Series Actuators are direct-mount, non-spring return electric valve actuators that operate on 24 VAC power. Use these synchronous motors or stepper motors (for line voltage models) driven actuators to provide accurate positioning on Johnson Controls VG1000 Series DN15, DN20, and DN25 (1/2, 3/4 and 1 Inch) ball valves in HVAC applications. The VA9104 Series Electric Non-Spring Return Actuators provide a running torque of 35 Inch-lbs (4 Nm). The nominal travel time is 60 seconds at 60 Hz for 90 deg of rotation.
