Control Valves & Actuators | SKU: VA-8122-1

VA-8122-1 | Johnson Controls | Control Valves & Actuators

VA-8122 Electric Valve Actuator, Proportional, Non-Spring Return, 24 VAC, 22 Inch-lbs, IP20, NEMA 1

$441.97 $707.15

Shipping calculated at checkout.

Available to order

Lead time: 15+ days

FREE SHIPPING

Description

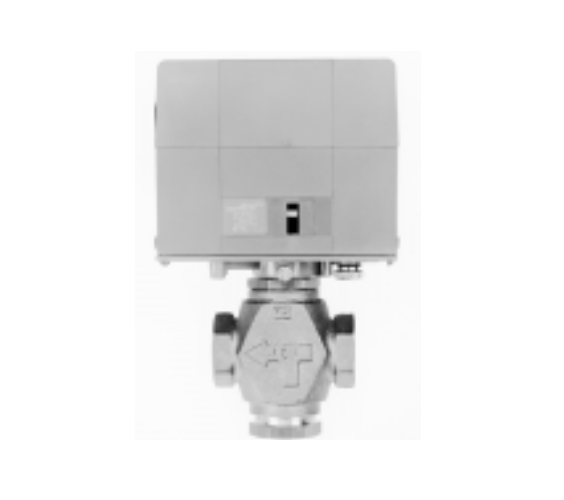

The VA-8122-1 is a Johnson Controls VA-8122 proportional electric valve actuator for valves with up to a 5/16 in. stroke. It is a compact, non-spring return actuator with a 22 lb minimum seating force, and fits 1/2 and 3/4 in. VG7000 bronze valves, VT Series terminal unit valves and VB-5x39 flare valves. An AUTOCAL pushbutton sets the control input range over the stroke.

Product Specifications

Name	Value
Control type	Proportional
Data Sheet	Download
Installation Instructions	Download
Enclosure type	IP20, NEMA 1
Fail safe	Non Fail Safe
Height	0.0
Length	0.0
Power supply	24 VAC
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Actuators
Series	Johnson Controls
Short desc	VA-8122 Electric Valve Actuator, Proportional, Non-Spring Return, 24 VAC, 22 Inch-lbs, IP20, NEMA 1
Supplier part number	VA-8122-1
Torque	22 in-lbs
Type	Electric Valve Actuator
Web eligible	Y
Width	0.0

Features and Benefits

{'Features_and_Benefits_1': 'Certifications: UL 873 Recognized, CSA C22.2 Number 139 Certified'}
