Control Valves & Actuators | SKU: VA7830-HGC-2

VA7830-HGC-2 | Johnson Controls | Control Valves & Actuators

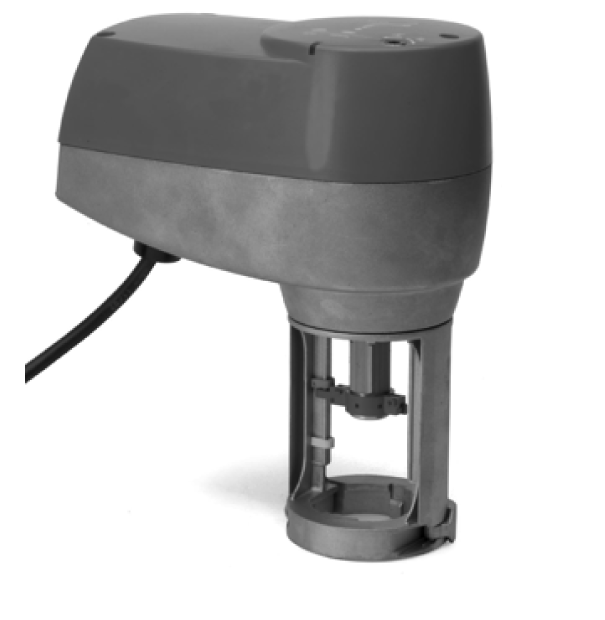

Name: VA7830-HGC-2
Brand: Johnson Controls
SKU: JCI-VA7830HGC2
Price: 1025.85 USD
Availability: InStock

VA7810 Series Electric Valve Actuator, On/Off, Floating, Proportional, Spring-Return, 24 VAC, 180 Inch-lbs, Halogen-Free Cable, IP54, NEMA 2

$1,025.85 $1,641.36

Shipping calculated at checkout.

Available to order

Lead time: 13 days

FREE SHIPPING

Description

The VA7800 Series Electric Valve Actuators control VG7000 Series Bronze Globe Valves in HVAC systems. The VA7800 Series produce a minimum linear output force of 180 lbs (800 N) and are field mounted or factory coupled to 1/2 Inch through 2 Inch VG7000 Series Bronze Globe Valves. Spring-return models from the factory set for 0 to 10 VDC Proportional Control. With a change of DIP switch settings, this model can be field configured to On/Off or Floating Control. In addition to these settings, optional auxiliary switches are also available.

Product Specifications

Name	Value
Connection type	Halogen-Free Cable
Control type	On/Off, Floating, Proportional
Data Sheet	Download
Installation Instructions	Download
Enclosure type	IP54, NEMA 2
Fail safe	Spring Return
Height	0.0
Length	0.0
Power supply	24 VAC
Product category	Control Valves & Actuators
Product subcategory	Spring Return Valve Actuators
Series	Johnson Controls
Short desc	VA7810 Series Electric Valve Actuator, On/Off, Floating, Proportional, Spring-Return, 24 VAC, 180 Inch-lbs, Halogen-Free Cable, IP54, NEMA 2
Supplier part number	VA7830-HGC-2
Torque	180 in-lbs (20 Nm)
Type	Electric Valve Actuator
Width	0.0

Features and Benefits

{'Features_and_Benefits_1': 'Direct Mount', 'Features_and_Benefits_2': 'Automatic Stroke Adjustment - Provides Easy, Quick and Precise Commissioning', 'Features_and_Benefits_3': 'Manual Override as Standard - Allows Manual Positioning of Valve for Easy Commissioning and Servicing', 'Features_and_Benefits_4': 'IP54 Enclosure Protection - Allows Installation in a Wide Range of Environments', 'Features_and_Benefits_5': 'Unique Swing-Gate Yoke - Offers Fast and Secure Attachment to the Valve', 'Features_and_Benefits_6': 'Brushless Motor - Ensures Low Energy Consumption and Long Life', 'Features_and_Benefits_7': 'Proportional Model - Enables One Model to be Used for Various Control Types', 'Features_and_Benefits_8': 'Force-Controlled Motor Shutoff - Reduces Energy Consumption, Wear of the Actuator and Protects the Valve from Excessive Forces', 'Features_and_Benefits_9': 'Stroke Position Indicator - Gives Visual Indication of Valve Operation, Provides Automatic Adjustment of Stroke Indicators During First Cycle of Operation', 'Features_and_Benefits_10': 'Status Light-Emitting Diode (LED) - Gives Visual Indication of Actuator Status and Assists with Diagnostic'}
