Control Valves & Actuators
| SKU:
VA7810-HGC-2
38% off

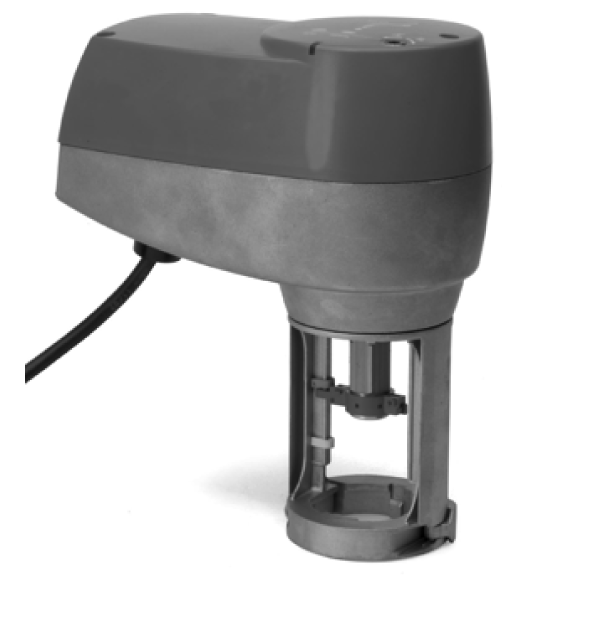

VA7810-HGC-2 | Johnson Controls | Control Valves & Actuators
VA7810 Series Electric Valve Actuator, On/Off, Floating, Proportional, Non-Spring-Return, 24 VAC, 180 Inch-lbs, Halogen-Free Cable, IP54, NEMA 2
Retail Price
$802.73
Original Price
$1,284.37
Shipping calculated at checkout.
VA7810-HGC-2 is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
No Cost for orders over $50
Delivery
Available to order
Lead time: 15+ days
FREE SHIPPING
Couldn't load pickup availability
Description
The VA7800 Series Electric Valve Actuators control VG7000 Series Bronze Globe Valves in HVAC systems. The VA7800 Series produce a minimum linear output force of 180 lbs (800 N) and are field mounted or factory coupled to 1/2 Inch through 2 Inch VG7000 Series Bronze Globe Valves. Models are available with or without optional auxiliary switches.
Product Specifications
| Name | Value |
|---|---|
| Connection type | Halogen-Free Cable |
| Control type | On/Off, Floating, Proportional |
| Data Sheet | Download |
| Installation Instructions | Download |
| Enclosure type | IP54, NEMA 2 |
| Fail safe | Non Fail Safe |
| Power supply | 24 VAC |
| Product category | Control Valves & Actuators |
| Product subcategory | Non-Spring Return Valve Actuators |
| Series | Johnson Controls |
| Short desc | VA7810 Series Electric Valve Actuator, On/Off, Floating, Proportional, Non-Spring-Return, 24 VAC, 180 Inch-lbs, Halogen-Free Cable, IP54, NEMA 2 |
| Supplier part number | VA7810-HGC-2 |
| Torque | 180 in-lbs (20 Nm) |
| Type | Electric Valve Actuator |
| Web eligible | Y |
Features and Benefits
{'Features_and_Benefits_1': 'Direct Mount', 'Features_and_Benefits_2': 'Automatic Stroke Adjustment - Provides Easy, Quick and Precise Commissioning', 'Features_and_Benefits_3': 'Manual Override as Standard - Allows Manual Positioning of Valve for Easy Commissioning and Servicing', 'Features_and_Benefits_4': 'IP54 Enclosure Protection - Allows Installation in a Wide Range of Environments', 'Features_and_Benefits_5': 'Unique Swing-Gate Yoke - Offers Fast and Secure Attachment to the Valve', 'Features_and_Benefits_6': 'Brushless Motor - Ensures Low Energy Consumption and Long Life', 'Features_and_Benefits_7': 'Proportional Model - Enables One Model to be Used for Various Control Types', 'Features_and_Benefits_8': 'Force-Controlled Motor Shutoff - Reduces Energy Consumption, Wear of the Actuator and Protects the Valve from Excessive Forces', 'Features_and_Benefits_9': 'Stroke Position Indicator - Gives Visual Indication of Valve Operation, Provides Automatic Adjustment of Stroke Indicators During First Cycle of Operation', 'Features_and_Benefits_10': 'Status Light-Emitting Diode (LED) - Gives Visual Indication of Actuator Status and Assists with Diagnostic'}
