Control Valves & Actuators | SKU: VA-7700-GGA-2

VA-7700-GGA-2 | Johnson Controls | Control Valves & Actuators

Name: VA-7700-GGA-2
Brand: Johnson Controls
SKU: JCI-VA7700GGA2
Price: 525.13 USD
Availability: InStock

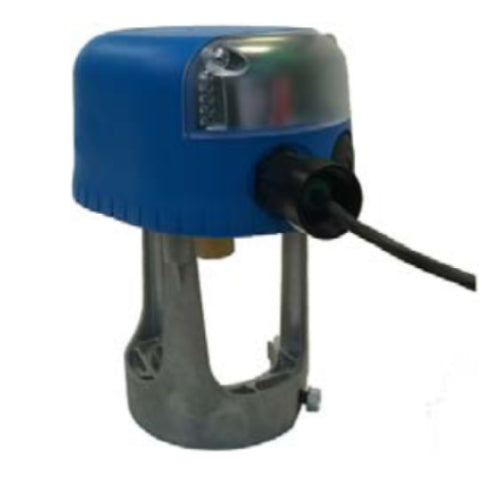

VA-7700 Series Electric Actuator, Proportional, Non-Spring Return, 24 VAC, 90 Inch-lbs, Plenum-Rated Cable, IP54, NEMA 2

$525.13 $840.21

Shipping calculated at checkout.

In stock (4 units)

Usually ships next day

FREE SHIPPING

Description

The VA-7700 Series Electric Non-Spring Return Actuators are synchronous motor-driven actuators for valves in HVAC applications. These compact actuators are available for proportional control. The VA-7700 Series Electric Actuators provide a stroke capability of 3/8 Inch (8mm) to a maximum 3/4 Inch (20mm). They have a 90 lbs (400 N) force minimum and respond to a variety of input signals. The VA-7700 Series Electric Actuators can be combined with Johnson Controls VG7000 and VB Series Valves in accordance with the maximum close-off pressure ratings specified. Each electric actuator is installed directly on VG7000 Series threaded valves using a jam nut (included with the electric actuator).

Product Specifications

Name	Value
Category	Valve
Connection type	Plenum-Rated Cable
Control type	Proportional
Data Sheet	Download
Installation Guide	Download
Enclosure type	IP54, NEMA 2
Fail safe	Non Fail Safe
Inv mast uid	109470
Power supply	24 VAC
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Actuators
Series	Johnson Controls
Short desc	VA-7700 Series Electric Actuator, Proportional, Non-Spring Return, 24 VAC, 90 Inch-lbs, Plenum-Rated Cable, IP54, NEMA 2
Supplier part number	VA-7700-GGA-2
Torque	90 in-lbs (10 Nm)
Type	Electric Valve Actuator
Variant weight	0.0

Features and Benefits

{'Features_and_Benefits_1': 'Self-Adjusting Proportional Electric Actuators Allow for Easy, Quick and Precise Commissioning and Servicing', 'Features_and_Benefits_2': 'Column of Five LEDs Allows Easy Visualization of the Electric Actuator Stroke Position and Status', 'Features_and_Benefits_3': 'IP54 Protection Class Allows for Installation in a Wide Range of Environments', 'Features_and_Benefits_4': 'Unique C-Shaped Yoke Design Allows for Lateral Mounting of the Electric Actuator, Reducing the Vertical Space Required Over the Valve for Installation', 'Features_and_Benefits_5': 'Positioner with Selectable Zero and Span Adjustment and Direct and Reverse Action Modes Enables Sequence Control', 'Features_and_Benefits_6': 'Magnetic Clutch Provides Constant Output Force for Close-Off of Valves and Protects the Motor in Stall Conditions', 'Features_and_Benefits_7': 'Signal Failure Position Preset Indicates a Control Signal Failure in the Electric Actuator', 'Features_and_Benefits_8': 'Certifications: UL Listed, CE'}
