Control Valves & Actuators | SKU: VA-6100-HGC

VA-6100-HGC | Johnson Controls | Control Valves & Actuators

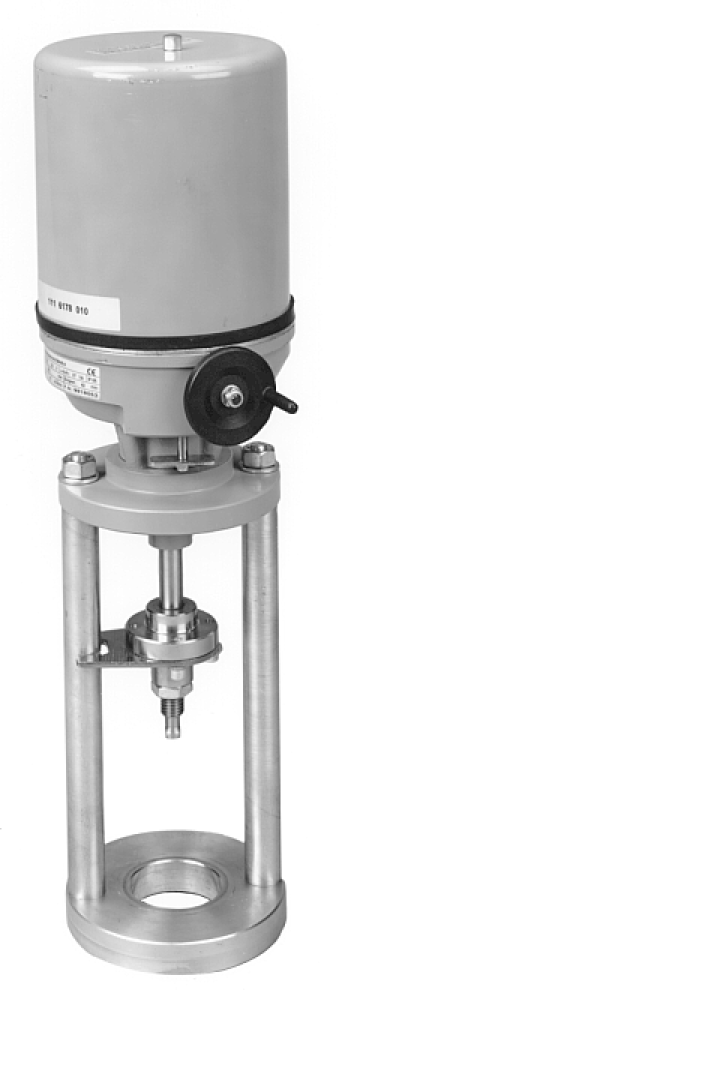

Name: VA-6100-HGC
Brand: Johnson Controls
SKU: JCI-VA6100HGC
Price: 8057.76 USD
Availability: InStock

VA-6100 Series Electric Actuator, Proportional, 20-28 VAC, 1350 Inch-lbs, IP65, NEMA 4

$8,057.76 $12,892.41

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

VA-6100 Series Electric Valve Actuators use a synchronous motor to accurately position Johnson Controls VG2000 Series Cast Iron Flanged Globe Valves in HVAC and industrial applications. These non-spring-return electric actuators have a 1350 lbs (6000 N) force output for proportional control. Integral auxiliary switches are available to indicate end-stop position or to perform switching functions. Position feedback is also available through an isolated 2000 ohm potentiometer at a fixed stroke of 1-21/32 Inch (42.07mm). All models feature a manual hand wheel for manual positioning of the valve, independent of a power supply.

Product Specifications

Name	Value
Category	Valve
Control type	Proportional
Data Sheet	Download
Installation Guide	Download
Enclosure type	IP65, NEMA 4
Inv mast uid	103112
Power supply	20-28 VAC
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Actuators
Series	Johnson Controls
Short desc	VA-6100 Series Electric Actuator, Proportional, 20-28 VAC, 1350 Inch-lbs, IP65, NEMA 4
Supplier part number	VA-6100-HGC
Torque	1350 in-lbs
Type	Electric Valve Actuator
Variant weight	16.5

Features and Benefits

{'Features_and_Benefits_1': 'Synchronous Motor with Pressure Switches Provides a Constant Running Speed and Establishes Fixed Close-Off Forces', 'Features_and_Benefits_2': 'Two-Bolt Coupler Clamp Provides Quick and Easy Coupling of the Actuator to the Valve Stem', 'Features_and_Benefits_3': 'Proportional Control Allows Optimal Choice of Control Signal', 'Features_and_Benefits_4': 'Adjustable Starting Point, Span and Action Provides Application Flexibility and Allows for Easy Sequencing from Only One Output Signal', 'Features_and_Benefits_5': '0-10 VDC or 0-20 mA Position Feedback Signal Provides Accurate Valve Position Indication in Response to an Input Signal up to 10 VDC or 20 mA', 'Features_and_Benefits_6': 'Auxiliary Switches and Feedback Potentiometer Available on Select Models Provides Independent Verification of Actuator Position', 'Features_and_Benefits_7': 'Manual Hand Wheel Allows for Manual Positioning of the Valve, Independent of a Power Supply', 'Features_and_Benefits_8': 'Certifications: UL 873 Listed, File E27734, CCN XAPX; cUL C22.2 Number 24-93 Listed, File E27734, CCN XAPX7'}
