Data Center Products  | SKU: PA0000001FH0

PA0000001FH0 | Johnson Controls | Enclosures, Panels & Fabrication

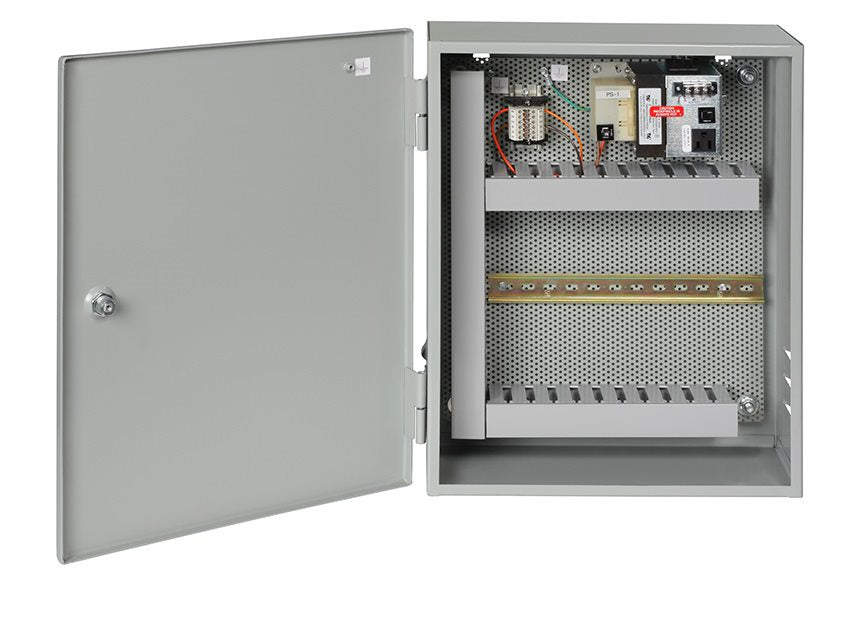

Type 1 Expansion Panel, (W x H x D): 20 x 16 x 6.62 Inch, ANSI 61 Gray Polyester Powder Coating
$709.83 $1,135.72
Shipping calculated at checkout.

PA0000001FH0 is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

Expansion panels provide a platform for field-built custom or standard panel solutions. The control panel is pre-assembled and contains a power supply, wire management hardware, DIN rails, a perforated sub-panel, and a 24 VAC distribution terminal block that compresses the field assembly time. Digital controllers and other required components are obtained and installed separately. The design of the Johnson Controls® panel enclosures provide a solid protection package for the intelligent devices in the building automation system. The National Electrical Manufacturers’ Association (NEMA) rated control panel enclosures increase flexibility and efficiency with installations. The control panel enclosures are compliant with UL and Canadian safety standards.

Product Specifications

Name Value
Category Expansion Panels
Description Expansion panels provide a platform for field-built custom or standard panel solutions. The control panel is pre-assembled and contains a power supply, wire management hardware, DIN rails, a perforated sub-panel, and a 24 VAC distribution terminal block that compresses the field assembly time. Digital controllers and other required components are obtained and installed separately. The design of the Johnson Controls® panel enclosures provide a solid protection package for the intelligent devices in the building automation system. The National Electrical Manufacturers’ Association (NEMA) rated control panel enclosures increase flexibility and efficiency with installations. The control panel enclosures are compliant with UL and Canadian safety standards.
Data Sheet Download
Display name 1 Data Sheet
Enclosure material Steel
Enclosure nema rating NEMA/UL Type 1
Features and benefits {'Features_and_Benefits_1': 'Flexibility to customize the expansion panel assembly to a wide variety of solutions that use basic panel components', 'Features_and_Benefits_2': 'Additional items, such as digital controllers, input/output modules, relays, and contractors, are sourced locally and field mounted on the panel', 'Features_and_Benefits_3': 'Five available sizes, all in a consistent layout', 'Features_and_Benefits_4': 'Distribution terminal block, which provides additional connections for 24 VAC supply', 'Features_and_Benefits_5': 'Available in NEMA/UL Type 1, NEMA/UL Type 3R, and NEMA/UL Type 3R/4/4X/12/13 rated enclosure models', 'Features_and_Benefits_6': 'Silk-screened Johnson Controls logo on the enclosure door', 'Features_and_Benefits_7': '16-gauge steel construction with industry standard ANSI 61 gray powder-coat finish for the NEMA/UL Type 1 and 3R enclosures', 'Features_and_Benefits_8': 'Type 5052-H32 aluminum for the NEMA/UL Type 3R/4/4X/12/13 enclosures along with stainless steel door clamp assemblies'}
Finish ANSI 61 Gray Polyester Powder Coating
P21 delete flag false
Product category Enclosures, Panels & Fabrication
Product subcategory Pre-Built Panels
Restricted class id NULL
Restricted item false
Series Johnson Controls
Short desc Type 1 Expansion Panel, (W x H x D): 20 x 16 x 6.62 Inch, ANSI 61 Gray Polyester Powder Coating
Size (W x H x D): 20 x 16 x 6.62 Inch
Sku JCI-PA0000001FH0
Supplier part number PA0000001FH0
Type Type 1 Expansion Panel
Ultra store sync us Yes
Va rating Enclosure, 96 VA Power Supply, Wire Duct, 5-point 24 VAC Distribution Terminal Block
Vendor active Y
Yorkland id PA0000001FH0

Features and Benefits

{'Features_and_Benefits_1': 'Flexibility to customize the expansion panel assembly to a wide variety of solutions that use basic panel components', 'Features_and_Benefits_2': 'Additional items, such as digital controllers, input/output modules, relays, and contractors, are sourced locally and field mounted on the panel', 'Features_and_Benefits_3': 'Five available sizes, all in a consistent layout', 'Features_and_Benefits_4': 'Distribution terminal block, which provides additional connections for 24 VAC supply', 'Features_and_Benefits_5': 'Available in NEMA/UL Type 1, NEMA/UL Type 3R, and NEMA/UL Type 3R/4/4X/12/13 rated enclosure models', 'Features_and_Benefits_6': 'Silk-screened Johnson Controls logo on the enclosure door', 'Features_and_Benefits_7': '16-gauge steel construction with industry standard ANSI 61 gray powder-coat finish for the NEMA/UL Type 1 and 3R enclosures', 'Features_and_Benefits_8': 'Type 5052-H32 aluminum for the NEMA/UL Type 3R/4/4X/12/13 enclosures along with stainless steel door clamp assemblies'}
