BAS Controllers | SKU: FX-PCV1615-1

FX-PCV1615-1 | Johnson Controls | BAS Controllers

Name: FX-PCV1615-1
Brand: Johnson Controls
SKU: JCI-FXPCV16151

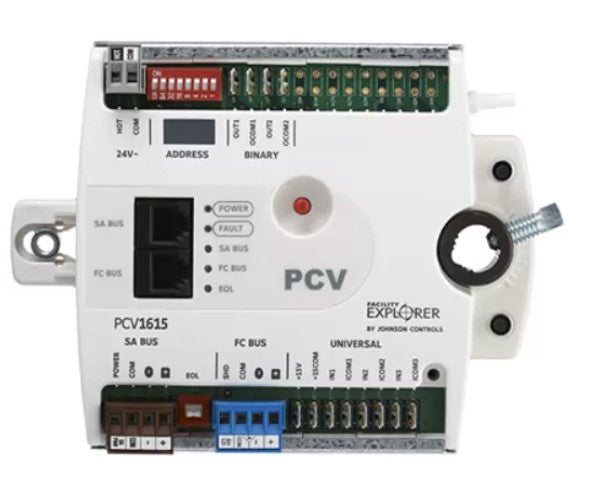

Facility Explorer, Programmable VAV Controller 3 UI 2 BO, BACnet MS/TP or N2, 1 RS-485

In stock (3 units)

Usually ships next day

FREE SHIPPING

Account approval required to view pricing and purchase this product

Request access

Already authorized? Sign in to your account.

Description

FX-PCVs are programmable digital controllers tailored for VAV applications that can be switched between MS/TP and N2 Communications protocols. When they are used as MS/TP devices, they communicate through the BACnetÂ® MS/TP protocol. In N2 mode, they can be used as replacements for legacy Johnson Controls controllers.

Product Specifications

Name	Value
Category	BAS Controllers
Communication protocol	BACnet MS/TP
Configuration	5-Point
Data Sheet	Download
Height	0.0
Length	0.0
Power supply	24 VAC
Product category	BAS Controllers
Product subcategory	Programmable Controllers
Series	Facility Explorer
Short desc	Facility Explorer, Programmable VAV Controller 3 UI 2 BO, BACnet MS/TP or N2, 1 RS-485
Supplier part number	FX-PCV1615-1
Type	Programmable Controller
Variant weight	1.46
Width	0.0

Features and Benefits

{'Features_and_Benefits_1': 'Wireless Capabilities (Where Available) Through An FX-ZFR Series', 'Features_and_Benefits_2': 'Built-in Actuator, End-Of-Line Switch', 'Features_and_Benefits_3': 'Switchable Communications Protocols from BACnet MS/TP to N2 Protocols or N2 to BACnet MS/TP Protocols', 'Features_and_Benefits_4': 'Wireless Field Controller (FC)/Sensor/Actuator (SA) Bus Interface (where available) - Provides a wireless alternative to hard-wired field bus networking and sensor connections', 'Features_and_Benefits_5': 'Integral damper actuator'}
