EP-8000-2 | Johnson Controls | Pressure

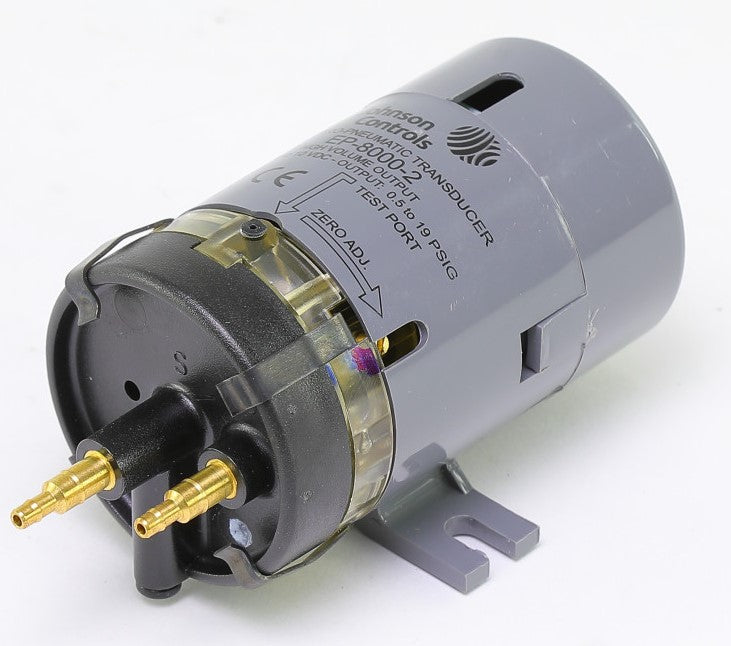

Name: EP-8000-2
Brand: Johnson Controls
SKU: JCI-EP80002
Price: 394.88 USD
Availability: InStock

Electro-Pneumatic Transducer, 0.25 to 9.5 VDC Input, 0.5 to 19 psig (3.5 to 133 kPa), High Volume (Relay) Output

$394.88 $631.80

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

EP-8000 Series Electro-Pneumatic Transducers convert a voltage or current signal from an electronic controller into a pneumatic output pressure signal. An increase or decrease in the input signal proportionally increases or decreases (respectively) the output pressure signal from the EP-8000. Four models are available, which are grouped into two basic versions: low-volume output units (non-relay) and high-volume output units (relay).

Product Specifications

Name	Value
Category	Pressure Transducers
Configuration	0.25 to 9.5 VDC Input
Data Sheet	Download
Inv mast uid	27077
Output type	Pressure High Volume (Relay)
Ports	5/32 or 1/4 Inch OD
Pressure range	0.5 to 19 psig (3.5 to 133 kPa)
Product category	Pressure
Product subcategory	Pressure Transducers
Series	Johnson Controls EP-8000
Short desc	Electro-Pneumatic Transducer, 0.25 to 9.5 VDC Input, 0.5 to 19 psig (3.5 to 133 kPa), High Volume (Relay) Output
Supplier part number	EP-8000-2
Type	Electro-Pneumatic Transducer
Variant weight	0.52

Features and Benefits

{'Features_and_Benefits_1': 'Compact, Simple Design Eases installation on a variety of mounting surfaces, including direct - mounting on pneumatic valve actuators', 'Features_and_Benefits_2': 'Choice of 0-10 VDC or4-20 mA Input Range - Interfaces with a wide range of controllers, making the unit ideal for retrofit installations', 'Features_and_Benefits_3': 'Hypodermic Needle Test Point - Allows for fast and easy output pressure signal measurement', 'Features_and_Benefits_4': 'Factory Set, Fully Adjustable Zero and Span - Facilitates field calibration, saving installation costs', 'Features_and_Benefits_5': 'High Accuracy with Low Hysteresis - Provides many years of use with less time spent on maintenance'}
