Current Switches | SKU: CSDECM-ADJ3

CSDECM-ADJ3 | Johnson Controls | Power Monitoring & Protection

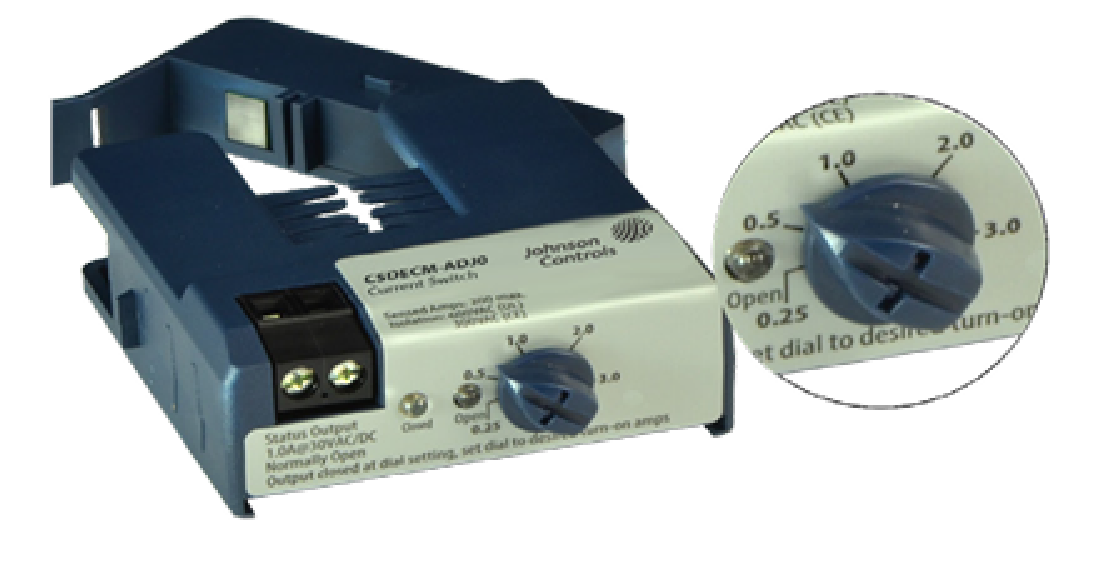

Name: CSDECM-ADJ3
Brand: Johnson Controls
SKU: JCI-CSDECMADJ3
Price: 303.79 USD
Availability: InStock

Ecm Current Switch, Normally Open, 10 A at 125 VAC Contact Rating, 9 VDC to 12 VDC 30 mA Nominal Coil, 0.84 H x 2.06 W x 0.72 D Inch with Relay

$303.79 $486.06

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

Use the ECM Current Switch for Go/No-Go Run Detection on Electrically Commutated Motors (ECMs) . ECMs Draw a Small Amount of AC Standby Current to Power Their Inverter, up to 1 A, Even when the Motor is Idle. The ECM Features a High Resolution Adjustable Turn-on Setpoint to Ignore Standby Current and Prevent False ON Status Indications.

Product Specifications

Name	Value
Category	Current Switches
Contact form	Normally Open
Data Sheet	Download
Inv mast uid	218117
Product category	Power Monitoring & Protection
Product subcategory	Current Switches
Sensing range	200 A
Series	Johnson Controls
Short desc	Ecm Current Switch, Normally Open, 10 A at 125 VAC Contact Rating, 9 VDC to 12 VDC 30 mA Nominal Coil, 0.84 H x 2.06 W x 0.72 D Inch with Relay
Supplier part number	CSDECM-ADJ3
Type	ECM Current Switch with Relay
Variant weight	1.0

Features and Benefits

{'Features_and_Benefits_1': 'Reduces The Number of Installed Components to Save Time and Space', 'Features_and_Benefits_2': 'Removable Relay Facilitates Service', 'Features_and_Benefits_3': 'Set the Trip Point with an Easily-Scaled Dial So That the Sensor Only Turns on when the Motor is Running', 'Features_and_Benefits_4': 'Very Low Turn-on Adjustment Scale', 'Features_and_Benefits_5': 'Maintenance-Free, No Call Backs', 'Features_and_Benefits_6': 'Certification: UL, cUL, CE'}
