Current Switches | SKU: CSDECM-ADJ0

CSDECM-ADJ0 | Johnson Controls | Power Monitoring & Protection

Name: CSDECM-ADJ0
Brand: Johnson Controls
SKU: JCI-CSDECMADJ0
Price: 129.01 USD
Availability: InStock

Ecm Current Switch, 0.25 A, 200 A, 1.0 A at 30 VAC/VDC, 2.5 H x 2.23 W x 0.82 D Inch without Relay

$129.01 $206.41

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

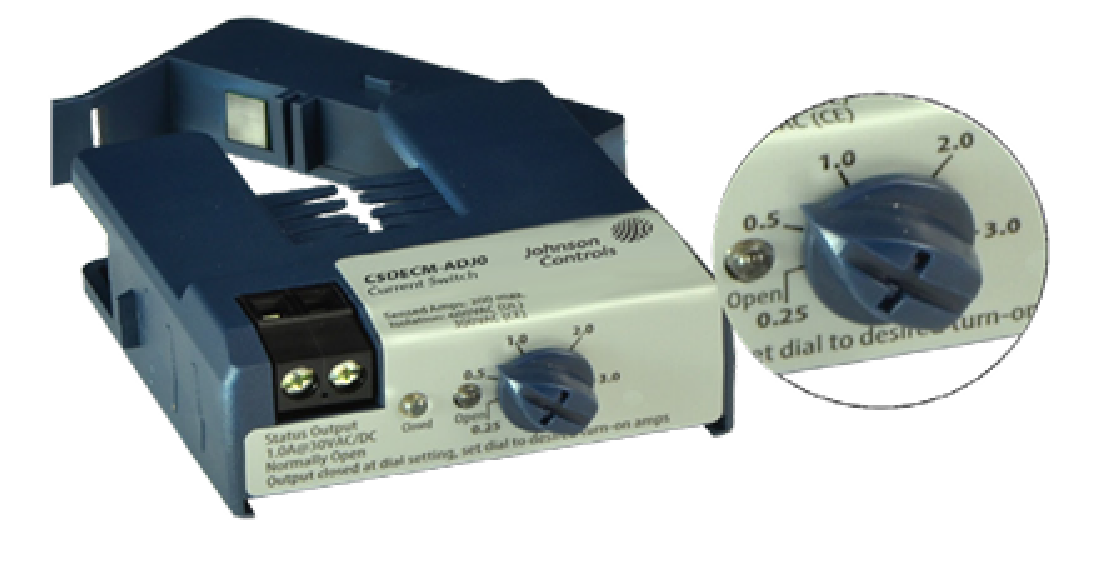

Use the ECM Current Switch for Go/No-Go Run Detection on Electrically Commutated Motors (ECMs) . ECMs Draw a Small Amount of AC Standby Current to Power Their Inverter, up to 1 A, Even when the Motor is Idle. The ECM Features a High Resolution Adjustable Turn-on Setpoint to Ignore Standby Current and Prevent False ON Status Indications.

Product Specifications

Name	Value
Category	Current Switches
Data Sheet	Download
Inv mast uid	218114
Product category	Power Monitoring & Protection
Product subcategory	Current Switches
Sensing range	200 A
Series	Johnson Controls
Short desc	Ecm Current Switch, 0.25 A, 200 A, 1.0 A at 30 VAC/VDC, 2.5 H x 2.23 W x 0.82 D Inch without Relay
Supplier part number	CSDECM-ADJ0
Type	ECM Current Switch without Relay
Variant weight	1.0

Features and Benefits

{'Features_and_Benefits_1': 'Mount The Sensor without Removal of The Conductor for Installation Savings', 'Features_and_Benefits_2': 'Clamp On Conductor with Aperture, or Use Detachable Base to Screw or Din Mount', 'Features_and_Benefits_3': 'Larger 0.75 Inch (1.9 Centimeter) Aperture Accommodates Oversize Conductors', 'Features_and_Benefits_4': 'Set the Trip Point with an Easily-Scaled Dial So That the Sensor Only Turns on when the Motor is Running', 'Features_and_Benefits_5': 'Very Low Turn-on Adjustment Scale', 'Features_and_Benefits_6': 'Maintenance-Free, No Call Backs', 'Features_and_Benefits_7': 'Certification: UL, cUL, CE'}
