A421AEC-01C | Johnson Controls | Thermostats & Controllers

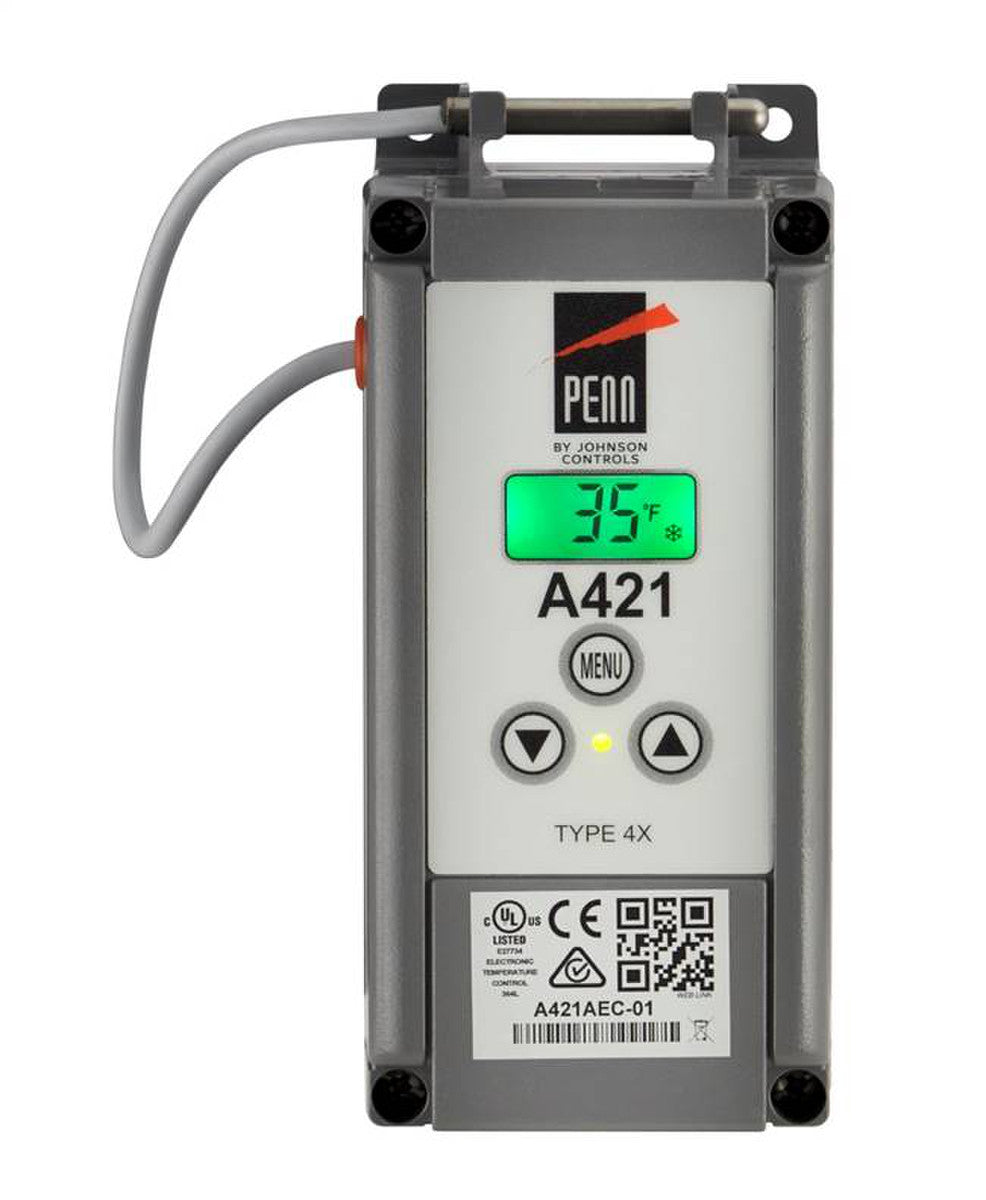

Name: A421AEC-01C
Brand: Johnson Controls
SKU: JCI-A421AEC01C
Price: 222.42 USD
Availability: InStock

Electronic Temperature Control, Type 4X (NEMA), SPDT, -40 to 212F, 1 Relay Inputs, 1 Relay Outputs, 120/240VAC

$222.42 $355.87

Shipping calculated at checkout.

In stock (2 units)

Usually ships next day

FREE SHIPPING

Description

The A421 Series Electronic Temperature Controls are single-stage controls with a single-pole, double-throw (SPDT) output relay, a bright backlit LCD, and a three-button touchpad interface that can be set up to restrict user adjustments. An LED indicates the output relay's On/Off status. The A421 Series Controls have simple On and Off temperature settings for heating or cooling, an adjustable anti-short cycle delay, and a temperature offset function

Product Specifications

Name	Value
Category	Remote Sensor
Data Sheet	Download
Installation Guide	Download
Inv mast uid	17975
Product category	Thermostats & Controllers
Product subcategory	Remote Sensor
Series	Johnson Controls
Short desc	Electronic Temperature Control, Type 4X (NEMA), SPDT, -40 to 212F, 1 Relay Inputs, 1 Relay Outputs, 120/240VAC
Supplier part number	A421AEC-01C
Variant weight	0.7

Features and Benefits

{'Features_and_Benefits_1': 'Includes an A99BB-25C temperature sensor with 9-7/8 in. (0.25 m) cable', 'Features_and_Benefits_2': 'High-impact, thermoplastic Type 1/IP20 or Type 4X (NEMA)/IP66 watertight, corrosion-resistant enclosures increase application options, allowing surface and snap-fit DIN rail mount, or watertight surface mount.', 'Features_and_Benefits_3': 'Easy-to-read, bright, adjustable backlit LCD screen displays the temperature, parameters, and status clearly and allows you to adjust LCD brightness for the ambient light conditions. Custom icons on the display provide visual cues on system and control status.', 'Features_and_Benefits_4': 'Adjustable On and Off temperature setpoints enable easy to set up cooling or heating control applications on the three-button touchpad, eliminating the need to remove the cover and reposition jumpers for reverse or direct control actions.', 'Features_and_Benefits_5': 'Displayed temperature offset allows you to adjust the displayed temperature to the actual sensed temperature in applications where the resistance error in long sensor cable leads cause a deviation in the displayed temperature from the actual sensed temperature.', 'Features_and_Benefits_6': 'Temperature setback/offset control enables the control to shift the On and Off setpoint values by a user-defined offset when an external switch closes the binary input control circuit. Using a switching timer enables you to set up occupied/unoccupied temperature setback schedules for your applications.', 'Features_and_Benefits_7': 'Basic and advanced programming menus allow you to easily set up your control application on the LCD using a simple three-button touchpad interface'}
