BAS Controllers | SKU: iSMA-B-MAC36NL

iSMA-B-MAC36NL | iSMA Controlli | BAS Controllers

Name: iSMA-B-MAC36NL
Brand: iSMA Controlli
SKU: ISC-ISMABMAC36NL
Price: 1322.80 USD
Availability: InStock

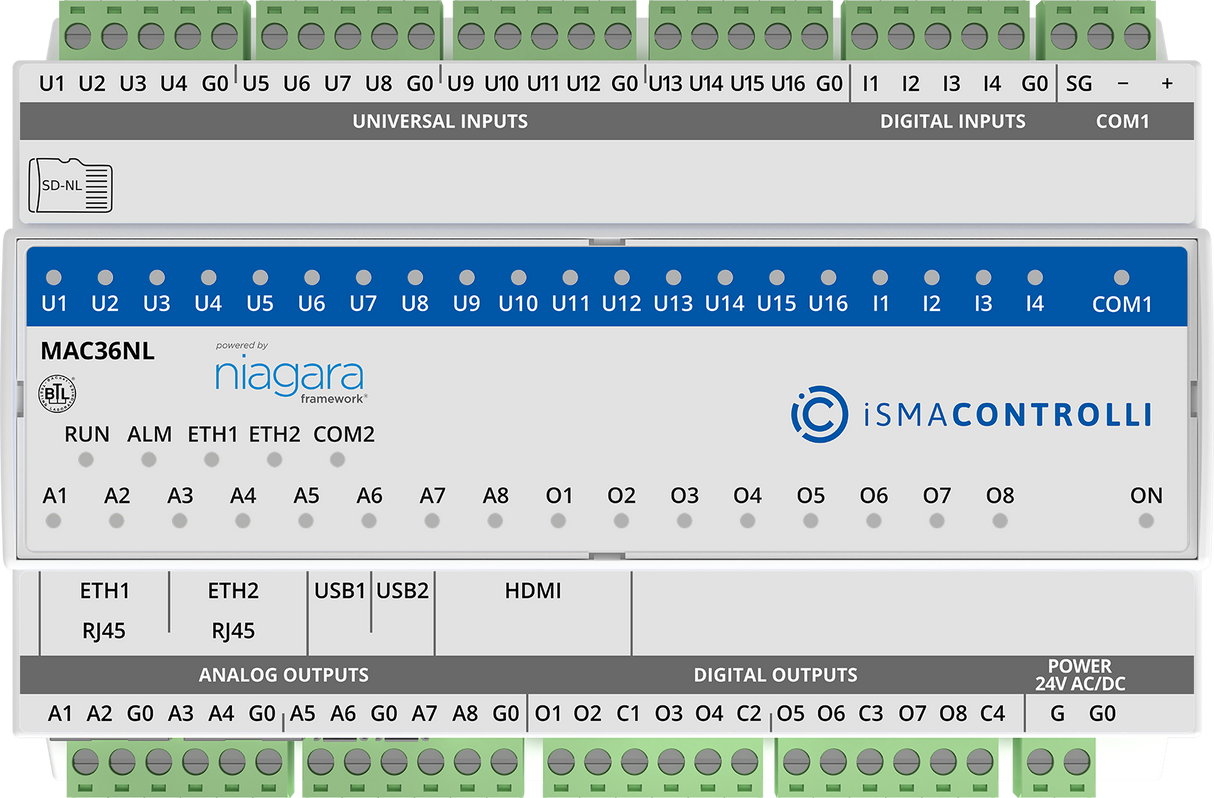

Hybrid IoT Controller Powered by Niagara Framework, Equipped with Linux, 36 I/O, 2 Ethernet Ports, 2 USB Ports, Hdmi and RS485 Communication Port

$1,322.80 $3,307.00

Shipping calculated at checkout.

In stock (2 units)

Usually ships next day

FREE SHIPPING

Description

Just one powerful controller with 36 I/Os onboard for monitoring and control, trends, alarms, HTML5 visualization, which integrates all protocols that exist in commercial buildings. Achieve maximum efficiency and comfort of the building, while reducing the energy cost to a minimum, thanks to connecting HVAC, metering, lighting, comfort, and energy management into one common platform.

Product Specifications

Name	Value
Category	BAS Controllers
Data Sheet	Download
Installation Guide	Download
Product category	BAS Controllers
Product subcategory	Supervisory Controllers
Short desc	Hybrid IoT Controller Powered by Niagara Framework, Equipped with Linux, 36 I/O, 2 Ethernet Ports, 2 USB Ports, Hdmi and RS485 Communication Port
Supplier part number	iSMA-B-MAC36NL

Features and Benefits

Industrial grade 4 GB microSD card | 2 USB 2.0 interfaces | 4 Digital Inputs - Dry contact inputs - made for monitoring. 100 Hz fast pulse counter with override function saves the real-time values to the SD card. | Niagara Framework Versions 4.4 and up | 2 independent Ethernet interfaces | 8 Digital Outputs - Digital outputs equipped with normally open 3 A relays allow for direct control without additional relays. | Status LED indicators | 8 Analog Outputs - 0-10 V DC control with 10 mA accuracy, PWM modes, and a maximum load of up to 20 mA to power external relays makes the output suitable for a variety of scenarios. | 16 Universal Inputs - Support for over 20 types of temperature sensors and voltage, resistance, current, and dry contact measurements on each universal input.
