IDEC | SKU: RH3B-ULDC48V

RH3B-ULDC48V | IDEC | Relays & Contactors

Name: RH3B-ULDC48V
Brand: IDEC
SKU: IDC-RH3BULDC48V
Price: 26.82 USD
Availability: InStock

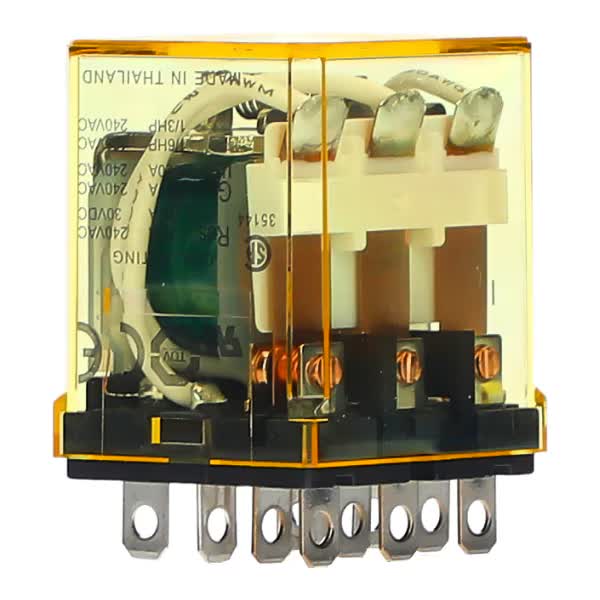

RH Series Power Relay Plug-In 3PDT 10 A 48 VDC

This product is no longer available

Description

Featuring the same contact ratings as the larger RR series, the RH series uses silver cadmium oxide contacts to help reduce voltage arcing. Available in 1 to 4 poles, with either .187 blade plug-in or PCB terminals, the RH series is known for going the distance. Options include manual check buttons, LED indicators, and top flange covers for direct surface mounting. All models carry worldwide approvals including UL, CSA, TUV and CE. Using a standard terminal arrangement, the RH series will plug into many competitors' sockets. In fact, since we private label sockets for so many companies, there is a good chance that the socket you are using was designed specifically for RH series relays.

Product Specifications

Name	Value
Category	General Purpose, Power Relays
Coil voltage	48 VDC
Configuration	LED Indicator
Contact form	3PDT
Contact rating	10 Amp
Data Sheet	Download
Mounting type	Blade Socket
Product category	Relays & Contactors
Product subcategory	Power Relays
Series	RH Series
Short desc	RH Series Power Relay Plug-In 3PDT 10 A 48 VDC
Supplier part number	RH3B-ULDC48V
Type	Compact Power Relay
Variant weight	0

Features and Benefits

{'Features_and_Benefits_1': 'Mounting options include top mounting, DIN socket, or panel mount socket', 'Features_and_Benefits_2': 'Compact midget size saves space', 'Features_and_Benefits_3': 'Options include indicator light and check button', 'Features_and_Benefits_4': 'Choice of Plug-In or PCB type terminals', 'Features_and_Benefits_5': 'SPDT, DPDT, 3PDT, or 4PDT AgCdO contacts', 'Features_and_Benefits_6': 'High switching capacity (10A)'}
