IDEC
| SKU:
RF2S-1A1BLD1-D12
RF2S-1A1BLD1-D12 | IDEC | Relays & Contactors

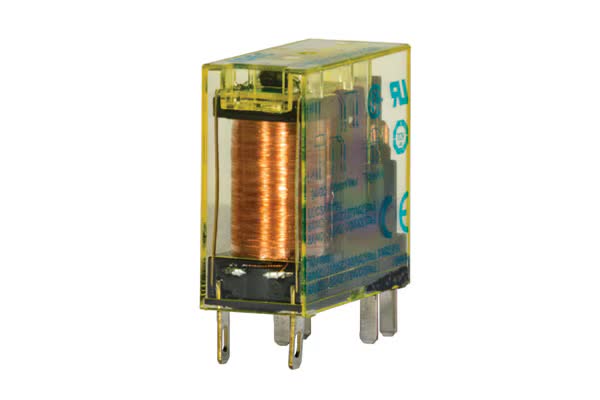

RF2 Series Force Guided Plug-In Relay 1NO + 1NC 12 VDC
Retail Price
$42.29
Shipping calculated at checkout.
RF2S-1A1BLD1-D12 is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
No Cost for orders over $50
Delivery
Available to order
Lead time: 15+ days
FREE SHIPPING
Couldn't load pickup availability
Description
The RF2S-1A1BLD1-D12 is an IDEC RF2 2-Pole Force-Guided Relay, Plug-In, 1NO-1NC, 12V DC, RTII, LED + Diode, 6A NO/3A NC.
Product Specifications
| Name | Value |
|---|---|
| Coil voltage | 12 VDC |
| Configuration | LED Indicator, Diode, Flux Tight Protection |
| Contact form | SPST-NO, SPST-NC |
| Contact rating | 6 A |
| Data Sheet | Download |
| Mounting type | Socket |
| Product category | Relays & Contactors |
| Product subcategory | Power Relays |
| Series | RF2 Series |
| Short desc | RF2 Series Force Guided Plug-In Relay 1NO + 1NC 12 VDC |
| Supplier part number | RF2S-1A1BLD1-D12 |
| Type | Force Guided Relay |
Features and Benefits
{'Features_and_Benefits_1': 'Can be used with SJ series relay socket', 'Features_and_Benefits_2': 'Mechanical indicator shows contact status.', 'Features_and_Benefits_3': 'Reinforced insulation between coil and contact and contacts of different poles.', 'Features_and_Benefits_4': 'RTIII degree of protection, LED, diode models available.', 'Features_and_Benefits_5': 'Two terminal styles - socket mounting and PC board mounting.', 'Features_and_Benefits_6': 'Force guided contact mechanism (EN50205 Type A TÜV approved).', 'Features_and_Benefits_7': '2-pole force guided relay to reduce cost and installation space.'}
