Control Valves & Actuators
| SKU:
VRN2BFPXK201
58% off

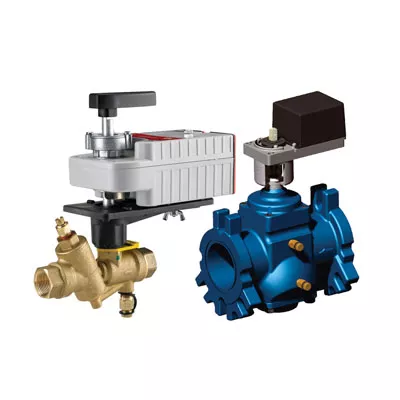

VRN2BFPXK201 | Honeywell | Control Valves & Actuators
Pressure Independent Control Valve with Electric Actuator - 3/4 in. NPT - 2-Way - 4 GPM - Plated Brass Trim - Dca Profile - Modulating Floating Two-Position (Fail-Safe Closed) with 1 Meter Cable - 24 VAC - 2 Aux Switches
Retail Price
$617.02
Original Price
$1,468.51
Shipping calculated at checkout.
VRN2BFPXK201 is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
No Cost for orders over $50
Delivery
Available to order
Lead time: 15+ days
FREE SHIPPING
Couldn't load pickup availability
Description
The VRN2BFPXK201 is a 3/4 in 2-way pressure independent control valve assembly with an universal (modulating, floating or 2-position) spring-return electric actuator. With a maximum regulated flow of 4 GPM and nickel-chrome plated brass trim, the valve installs with female NPT end connections. The actuator runs on 24 VAC, fails closed and delivers 27 in-lb of torque. Built-in auxiliary end switches are included. The actuator carries a NEMA 2 rating.
Product Specifications
| Name | Value |
|---|---|
| Actuator type | Analog Modulating/Floating/2-Position |
| Application | HVAC Systems |
| Configuration | Built-in Auxiliary Switches |
| Data Sheet | Download |
| Installation Instructions | Download |
| Enclosure type | IP54, NEMA 2 |
| End connection | FNPT |
| Fail safe | Spring Return Fail Safe Closed |
| Flow rate | 4 GPM |
| Height | 10.02 in |
| Length | 8.94 in |
| Material | Forged Brass |
| Product category | Control Valves & Actuators |
| Product subcategory | Pressure Independent Valves |
| Series | VRN Series |
| Short desc | Pressure Independent Control Valve with Electric Actuator - 3/4 in. NPT - 2-Way - 4 GPM - Plated Brass Trim - Dca Profile - Modulating Floating Two-Position (Fail-Safe Closed) with 1 Meter Cable - 24 VAC - 2 Aux Switches |
| Size | 3/4 in |
| Supplier part number | VRN2BFPXK201 |
| Torque | 27 in-lbs (3 Nm) |
| Trim material | Plated Brass |
| Type | Pressure Independent Control Valve |
| Valve pattern | 2-Way |
| Valve type | Pressure Independent |
| Voltage | 24 VAC |
| Width | 4.64 in |
Features and Benefits
{'Features_and_Benefits_1': 'Controls hot or chilled water with up to 50% glycol', 'Features_and_Benefits_2': 'Regulated flow rates available from 1 to 95 GPM', 'Features_and_Benefits_3': 'Differential pressure regulator maintains a constant pressure drop across the valve seat', 'Features_and_Benefits_4': 'Rolling diaphragm regulator provides flow control accuracy of ±5%', 'Features_and_Benefits_5': 'Equal percentage flow characteristic from a patented flow control ball insert', 'Features_and_Benefits_6': 'Multiple maximum flow rates available per valve size', 'Features_and_Benefits_7': 'Patented ball seals for low operating torque', 'Features_and_Benefits_8': 'Spring return actuators field configurable for normally open or normally closed', 'Features_and_Benefits_9': 'Removable manual operating handle for use during installation or power failure', 'Features_and_Benefits_10': 'Upstream test port for venting or pressure gauge attachment'}
