Control Valves & Actuators
| SKU:
VBN3BKPXJ401
58% off

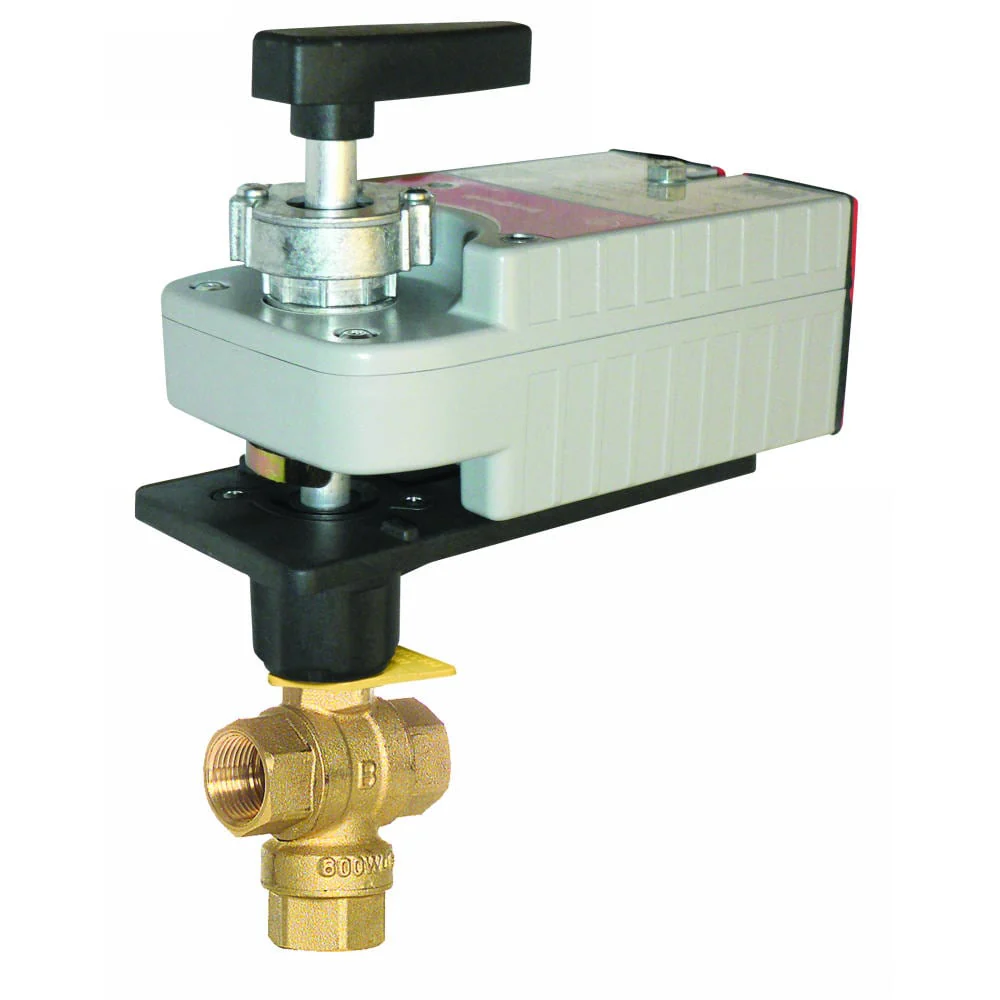

VBN3BKPXJ401 | Honeywell | Control Valves & Actuators
Control Ball Valve with Electric Actuator - 3/4 In. NPT - 3-Way - 11 CV - Plated Brass Trim - Dca Profile - Modulating Floating Two-Position (Fail-Safe B-Ab Open) with 1 Meter Cable - 24 VAC
Retail Price
$381.78
Original Price
$908.63
Shipping calculated at checkout.
VBN3BKPXJ401 is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
No Cost for orders over $50
Delivery
Available to order
Lead time: 15+ days
FREE SHIPPING
Couldn't load pickup availability
Description
The VBN3BKPXJ401 is a 3/4 in 3-way control ball valve assembly with an universal (modulating, floating or 2-position) spring-return electric actuator. With an 11 Cv flow coefficient and nickel-chrome plated brass trim, the valve installs with female NPT end connections. The actuator runs on 24 VAC and delivers 27 in-lb of torque. The actuator carries a NEMA 2 rating.
Product Specifications
| Name | Value |
|---|---|
| Actuator type | Analog Modulating/Floating/2-Position |
| Application | HVAC Systems |
| Data Sheet | Download |
| Installation Instructions | Download |
| Enclosure type | IP54, NEMA 2 |
| End connection | FNPT |
| Fail safe | Fail Safe |
| Flow coefficient | 11 Cv |
| Height | 8.81 in |
| Length | 6.5 in |
| Material | Brass |
| Product category | Control Valves & Actuators |
| Product subcategory | Spring Return Valve Assemblies |
| Series | VBN Series |
| Short desc | Control Ball Valve with Electric Actuator - 3/4 In. NPT - 3-Way - 11 CV - Plated Brass Trim - Dca Profile - Modulating Floating Two-Position (Fail-Safe B-Ab Open) with 1 Meter Cable - 24 VAC |
| Size | 3/4 in |
| Supplier part number | VBN3BKPXJ401 |
| Torque | 27 in-lbs (3 Nm) |
| Trim material | Plated Brass |
| Type | Control Ball Valve |
| Valve pattern | 3-Way |
| Valve type | Ball |
| Voltage | 24 VAC |
| Width | 4 in |
Features and Benefits
{'Features_and_Benefits_1': 'Removable manual operating handle for use during installation or power failure', 'Features_and_Benefits_2': 'Equal percentage flow characteristic', 'Features_and_Benefits_3': 'Cv ratings similar to globe valves, from 0.33 to 266', 'Features_and_Benefits_4': 'Low torque means smaller, lower cost actuators', 'Features_and_Benefits_5': 'Installs in a globe valve "T" pattern with no extra elbows or piping', 'Features_and_Benefits_6': 'Mixing or diverting control on 3-way valves', 'Features_and_Benefits_7': 'Actuator mounts in any of four orientations', 'Features_and_Benefits_8': 'Field-serviceable stem assembly', 'Features_and_Benefits_9': 'Field configurable for normally open or normally closed fail-safe position', 'Features_and_Benefits_10': 'NEMA 3R option available'}
