Control Valves & Actuators  | SKU: VBN2BJPX6102

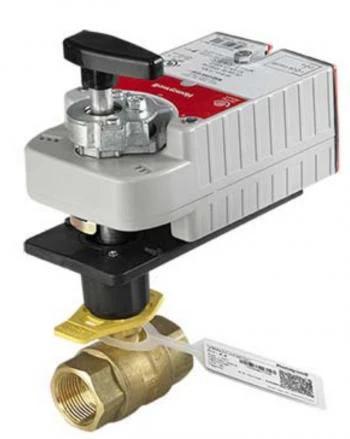

VBN2BJPX6102 | Honeywell | Control Valves & Actuators

Control Ball Valve with Electric Actuator - 3/4 In. NPT - 2-Way - 7.4 CV - Plated Brass Trim - Dca Profile - Modulating Floating(Fail Open) - 24 VAC
Retail Price $625.55 Original Price $1,488.81
Shipping calculated at checkout.

VBN2BJPX6102 is backordered and will ship as soon as it is back in stock.

Delivery

Available to order
Lead time: 15+ days
FREE SHIPPING

Description

The VBN2BJPX6102 is a 3/4 in 2-way control ball valve assembly with a modulating/floating spring-return electric actuator. With a 7.4 Cv flow coefficient and nickel-chrome plated brass trim, the valve installs with female NPT end connections. The actuator runs on 24 VAC, fails open and delivers 44 in-lb of torque. The assembly carries a NEMA 3R enclosure rating.

Product Specifications

Name Value
Actuator type Analog Modulating/Floating
Application HVAC Systems
Enclosure type NEMA 3R
End connection FNPT
Fail safe Spring Return Fail Safe Open
Flow coefficient 7.4 Cv
Height 8.12 in
Length 6.44 in
Material Brass
Product category Control Valves & Actuators
Product subcategory Spring Return Valve Assemblies
Series VBN Series
Short desc Control Ball Valve with Electric Actuator - 3/4 In. NPT - 2-Way - 7.4 CV - Plated Brass Trim - Dca Profile - Modulating Floating(Fail Open) - 24 VAC
Size 3/4 in
Supplier part number VBN2BJPX6102
Torque 44 in-lbs (5 Nm)
Trim material Plated Brass
Type Control Ball Valve
Valve pattern 2-Way
Valve type Ball
Voltage 24 VAC
Width 4 in

Features and Benefits

{'Features_and_Benefits_1': 'Removable manual operating handle for use during installation or power failure', 'Features_and_Benefits_2': 'Equal percentage flow characteristic', 'Features_and_Benefits_3': 'Cv ratings similar to globe valves, from 0.33 to 266', 'Features_and_Benefits_4': 'Low torque means smaller, lower cost actuators', 'Features_and_Benefits_5': 'Installs in a globe valve "T" pattern with no extra elbows or piping', 'Features_and_Benefits_6': 'Mixing or diverting control on 3-way valves', 'Features_and_Benefits_7': 'Actuator mounts in any of four orientations', 'Features_and_Benefits_8': 'Field-serviceable stem assembly', 'Features_and_Benefits_9': 'Field configurable for normally open or normally closed fail-safe position', 'Features_and_Benefits_10': 'NEMA 3R option available'}
