Control Valves & Actuators
| SKU:
VBN2BHPX6200
58% off
VBN2BHPX6200 | Honeywell | Control Valves & Actuators

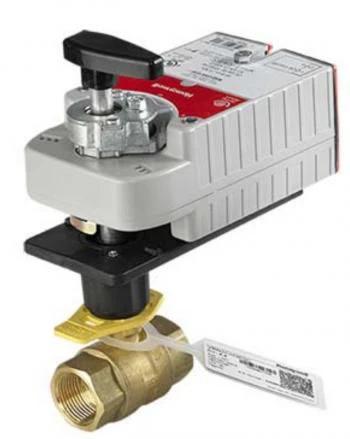

Control Ball Valve with Electric Actuator - 3/4 In. NPT - 2-Way - 4.3 CV - Plated Brass Trim - Dca Profile - Modulating Floating(Fail Closed) - 24 VAC
Retail Price
$451.76
Original Price
$1,075.23
Shipping calculated at checkout.
VBN2BHPX6200 is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
No Cost for orders over $50
Delivery
Available to order
Lead time: 15+ days
FREE SHIPPING
Couldn't load pickup availability
Description
The VBN2 and VBN3 Series are Honeywell's characterized flow, low-torque, two-, and three-way ball valves. They are designed to provide Cv ratings that closely match industry-standard globe valves, and they have equal percentage flow characteristics. A single-style bracket maximizes simplicity and flexibility in mounting spring or non-spring return actuators. The valve bodies are 1/2 in. to 3 in. NPT sizes and use low-torque, low-cost actuators.
Product Specifications
| Name | Value |
|---|---|
| Actuator type | Analog Modulating/Floating |
| Application | HVAC Systems |
| Data Sheet | Download |
| Installation Instructions | Download |
| Enclosure type | IP54, NEMA 2 |
| End connection | FNPT |
| Fail safe | Spring Return Fail Safe Closed |
| Flow coefficient | 4.3 Cv |
| Height | 8.12 in |
| Length | 6.44 in |
| Material | Brass |
| Product category | Control Valves & Actuators |
| Product subcategory | Spring Return Valve Assemblies |
| Series | VBN Series |
| Short desc | Control Ball Valve with Electric Actuator - 3/4 In. NPT - 2-Way - 4.3 CV - Plated Brass Trim - Dca Profile - Modulating Floating(Fail Closed) - 24 VAC |
| Size | 3/4 in |
| Supplier part number | VBN2BHPX6200 |
| Torque | 44 in-lbs (5 Nm) |
| Trim material | Plated Brass |
| Type | Control Ball Valve |
| Valve pattern | 2-Way |
| Valve type | Ball |
| Voltage | 24 VAC |
| Width | 4 in |
Features and Benefits
{'Features_and_Benefits_1': 'Removable manual override handle', 'Features_and_Benefits_2': 'Nema 3R option available', 'Features_and_Benefits_3': 'Three-way body pattern similar to globe valves', 'Features_and_Benefits_4': 'Parabolic flow insert constructed into the ball', 'Features_and_Benefits_5': 'Cv ratings similar to globe valves', 'Features_and_Benefits_6': 'Low torque means smaller, lower cost actuators'}
