UN-RL1644MS24NMC | Honeywell | BAS Controllers
UN-RL1644MS24NMC is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
Delivery
Usually ships next day
Account approval required to view pricing and purchase this product
Request accessAlready authorized? Sign in to your account.
Couldn't load pickup availability
Description

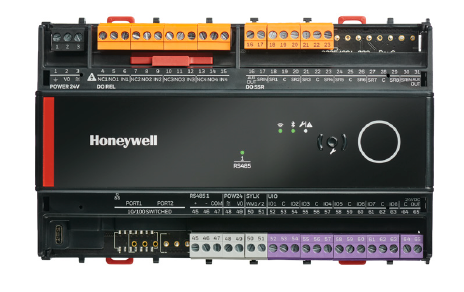

The UN-RL1644MS24NMC is a Honeywell Optimizer Unitary programmable controller in the large housing, with 16 universal inputs/outputs, 4 solid-state relay (SSR) outputs and 4 relay outputs. It communicates using BACnet MS/TP and runs on 24 Vac or 24 Vdc.
Optimizer I/O modules connect to this controller through its RS485 Modbus port. Each connection requires one IO-ADPT-S-2 wiring adapter (pack of 2) and one ENDCOVER-10 end cover (pack of 10), sold separately. The adapter converts the I/O module's touchflake connection to wired power and RS485 terminals, and the end cover terminates the RS485 bus and protects the touchflake connection on the last module.
Product Specifications
| Name | Value |
|---|---|
| Application | Unitary HVAC Equipment |
| Communication interface | RS-485 |
| Communication protocol | BACnet MS/TP |
| Configuration | No BlueTooth |
| Data Sheet | Download |
| Installation Instructions | Download |
| Height | 2.1 |
| Humidity range | 5% - 95% non-condensing |
| Inputs | 16 Universal I/O |
| Length | 8.5 |
| Maximum operating temperature | 122°F |
| Outputs | 4 Relays, 4 SSR Relays |
| Power supply | 24 VAC/VDC |
| Product category | BAS Controllers |
| Product subcategory | Programmable Controllers |
| Programmable | true |
| Series | Optimizer |
| Short desc | Optimizer Unitary Programmable Controller, BACnet MS/TP, 16 UIO, 4 SSR, 4 Relays, No Bluetooth, 24 VAC/24 VDC, Large Housing |
| Supplier part number | UN-RL1644MS24NMC |
| Temperature range | -40°F - 122°F |
| Type | Unitary Controller |
| Voltage | 24 VAC/VDC |
| Web eligible | Y |
| Width | 4.79 |
Features and Benefits
