Data Center Products  | SKU: TC500A-N

TC500A-N | Honeywell | Thermostats & Controllers

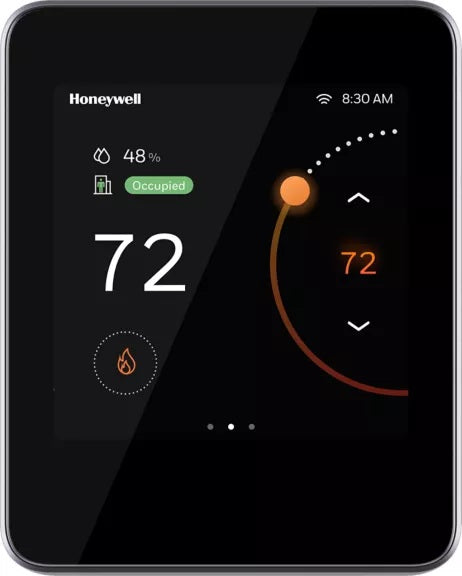

TC500A Connected Commercial Thermostat, 3 Heat/3 Cool Conventional, 5 Heat/3 Cool Heat Pump, 24 VAC, BACnet IP
$449.75 $1,070.38
Shipping calculated at checkout.

Delivery

In stock (218 units)

Usually ships next day

FREE SHIPPING

Description

The TC500A-N Smart thermostat is an advanced, highly configurable, connected device designed for the unique needs of commercial buildings. It is suitable for conventional and heat pump applications both with or without economizer. The TC500A-N supports remote wireless control via Honeywell’s ConnectMe mobile app allowing occupants and facility managers to perform remote monitoring, control, and scheduling. Configuration and scheduling are also supported using BAS integration via BACnet IP or BACnet MS/TP. Superior energy efficiency, comfort, and maximum system performance are achieved via advanced scheduling, differential temperature monitoring, internal/external economizer integration, and open ADR (automated demand response) compatibility.

Product Specifications

Name Value
Category Zone and Room Controllers
Color White
Communication interface BACnet IP
Configuration 3 Heat/3 Cool Conventional, 5 Heat/3 Cool Heat Pump
Data Sheet Download
Height 2.0
Length 7.0
Output type See Datasheet
Product category Thermostats & Controllers
Product subcategory Zone & Room Controllers
Series TC500A
Short desc TC500A Connected Commercial Thermostat, 3 Heat/3 Cool Conventional, 5 Heat/3 Cool Heat Pump, 24 VAC, BACnet IP
Supplier part number TC500A-N
Type Connected Commercial Thermostat
Variant weight 0.1
Voltage 24 VAC
Width 6.0

Features and Benefits

{'Features_and_Benefits_1': 'Smart commercial application thermostat with flexible customization and highly intuitive user interface', 'Features_and_Benefits_2': 'Supports RTU/AHU applications 5H/3C heat pump or 3H/4C conventional plus modulating heating and/or cooling for conventional systems and select FCU applications.', 'Features_and_Benefits_3': 'Provides modulating cooling output for inverter type or CopelandTM digital scroll compressor controllers', 'Features_and_Benefits_4': 'Premium color touch screen interface (edge-to-edge glass) with auto sleep mode and 3 color operating status indicator bar', 'Features_and_Benefits_5': 'Wireless and wired communication via Wi-Fi, Bluetooth, BACnet IP, BACnet MS/TP, and Sylk', 'Features_and_Benefits_6': 'Multiple, configurable levels of user privilege access such as setpoint limits, reminders, and scheduling with lockouts for advanced configurations', 'Features_and_Benefits_7': 'Fast and simple contractor commissioning through Honeywell Connect Mobile App, TC500 guided menu, or via Niagara BACnet tool', 'Features_and_Benefits_8': 'Flexible, configurable universal inputs/outputs, including (2) inputs and (2) inputs/outputs to support a wide variety of applications', 'Features_and_Benefits_9': 'Integrated economizer function with fault detection and predictive differential temperature monitoring for easy troubleshooting.', 'Features_and_Benefits_10': 'Advanced level functionality including contractor service mode, demand response, packaged economizer support, cybersecurity, freeze protection, and more. Weekly, holiday, and special event scheduling flexibility'}
