BAS Controllers
| SKU:
PVL4022AS/U
58% off

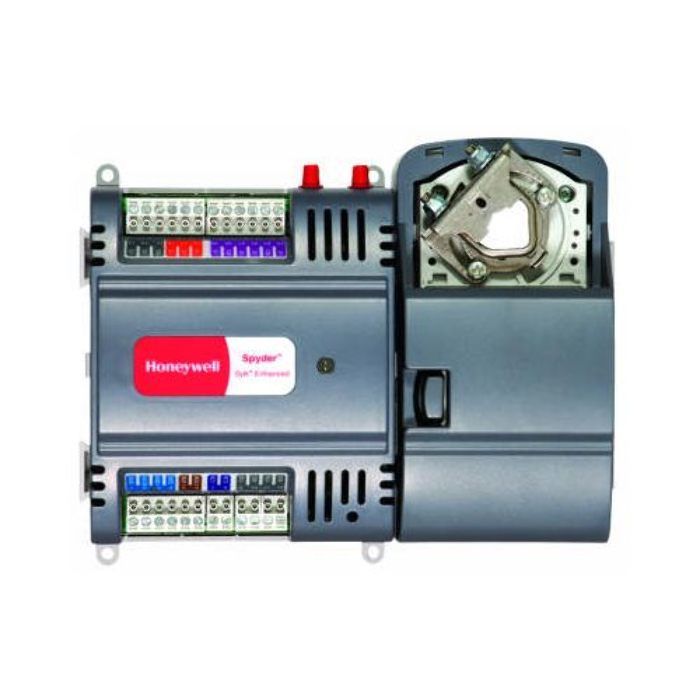

PVL4022AS/U | Honeywell | BAS Controllers
Spyder VAV Controller, Programmable, 4 UI 2 AO 2 DO, LON Controller with Actuator
PVL4022AS/U is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
No Cost for orders over $50
Delivery
In stock (25 units)
Usually ships next day
FREE SHIPPING
Account approval required to view pricing and purchase this product
Request accessAlready authorized? Sign in to your account.
Couldn't load pickup availability
Description
SPYDER (LON) WITH SENSOR BUS - PROGRAMMABLE VAV CONTROLLER WITH ACTUATOR
Product Specifications
| Name | Value |
|---|---|
| Application | Variable Air Volume (VAV) |
| Communication interface | FTT-10A |
| Communication protocol | Lonworks |
| Configuration | Sylk Compatible |
| Depth | 2.25 in |
| Data Sheet | Download |
| Height | 6.2813 |
| Humidity range | 5% - 95% non-condensing |
| Inputs | 4 Universal Input 0 Digital Input |
| Length | 2.25 |
| Maximum operating temperature | 122°F |
| Outputs | 2 Analog Output 2 Digital Output |
| Power supply | 20 - 30 VAC |
| Product category | BAS Controllers |
| Product subcategory | VAV Controllers |
| Programmable | true |
| Series | Spyder |
| Short desc | Spyder VAV Controller, Programmable, 4 UI 2 AO 2 DO, LON Controller with Actuator |
| Supplier part number | PVL4022AS/U |
| Temperature range | 32°F - 122°F |
| Type | VAV Controller |
| Voltage | 20 - 30 VAC |
| Web eligible | Y |
| Width | 8.2813 |
Features and Benefits
{'Features_and_Benefits_1': 'Built-in Actuator, Real Time Clock, Sylk Bus', 'Features_and_Benefits_2': 'Built-in Zone Control Functions Include a Remote Wall Module Interface and a Scheduler', 'Features_and_Benefits_3': 'Microbridge Air Flow Sensor with Dual Integral Restrictor Design (PVL0000AS, PVL4022AS, PVL4024NS, PVL6436AS, and PVL6438NS Only)', 'Features_and_Benefits_4': 'Actuator (PVL0000AS, PVL4022AS, and PVL6436AS Only) Mounts Directly Onto VAV Box Damper Shaft and has Up to 44 lb-in (5 Nm) Torque, 90-Degree Stroke, and 90 Second Timing at 60 Hz'}
