BAS Controllers
| SKU:
PVB4022AS/U
58% off
PVB4022AS/U | Honeywell | BAS Controllers

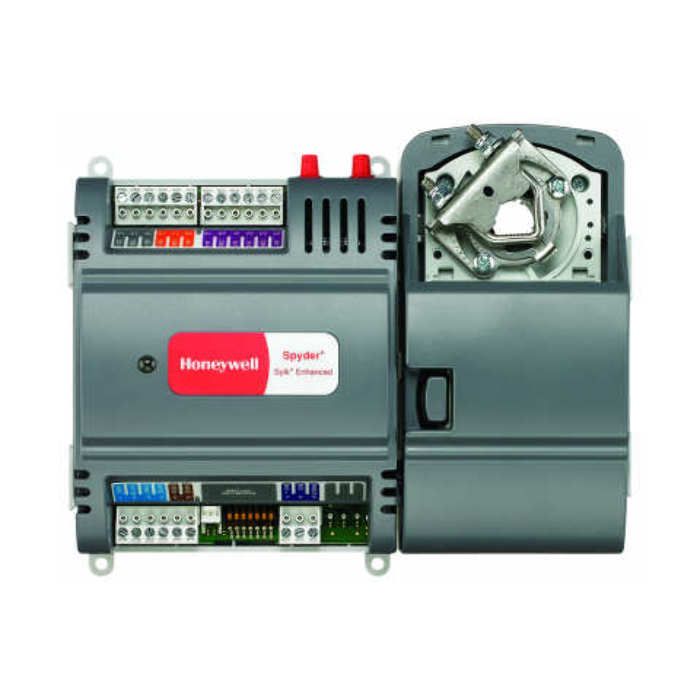

Spyder VAV Controller, Programmable 4 UI 2 AO 2 DO, BACnet MS/TP, RS-485 Controller with Actuator
PVB4022AS/U is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
No Cost for orders over $50
Delivery
In stock (131 units)
Usually ships next day
FREE SHIPPING
Account approval required to view pricing and purchase this product
Request accessAlready authorized? Sign in to your account.
Couldn't load pickup availability
Description
The Honeywell Spyder BACnet Controllers (PUB and PVB series) are BACnet MS/TP network controllers designed for VAV, unitary, and advanced HVAC applications. Built for seamless integration into building automation systems, these controllers deliver reliable, high-performance control in commercial environments.
Fully programmable and configurable through software, Spyder BACnet controllers offer flexible system design and easy integration. Their versatile I/O configuration supports a wide range of sensors and control devices, making them a powerful solution for modern HVAC systems.
Product Specifications
| Name | Value |
|---|---|
| Application | Variable Air Volume (VAV) |
| Communication interface | RS-485 |
| Communication protocol | BACnet MS/TP |
| Configuration | Sylk Compatible |
| Depth | 2.26 in |
| Data Sheet | Download |
| Height | 2.8 |
| Humidity range | 5% - 95% non-condensing |
| Inputs | 4 Universal Input 0 Digital Input |
| Length | 14.5 |
| Maximum operating temperature | 122°F |
| Outputs | 2 Analog Output 2 Digital Output |
| Power supply | 20 - 30 VAC |
| Product category | BAS Controllers |
| Product subcategory | VAV Controllers |
| Programmable | true |
| Series | Spyder |
| Short desc | Spyder VAV Controller, Programmable 4 UI 2 AO 2 DO, BACnet MS/TP, RS-485 Controller with Actuator |
| Supplier part number | PVB4022AS/U |
| Temperature range | 32°F - 122°F |
| Type | VAV Controller |
| Voltage | 20 - 30 VAC |
| Web eligible | Y |
| Width | 8.28 |
Features and Benefits
{'Features_and_Benefits_1': 'Built-in Actuator, Real Time Clock, Sylk Bus', 'Features_and_Benefits_2': 'EIA-485 Communications Network Capable of Baud Rates Between 96 and 1152 kbits/s', 'Features_and_Benefits_3': 'Both Controller Housing and Actuator are UL Plenum Rated', 'Features_and_Benefits_4': 'Function Block Engine, Which Allows the Application Designer to Program the Controller to Perform a Wide Variety of HVAC Applications'}
