BAS Controllers
| SKU:
PUB6438S/U
58% off

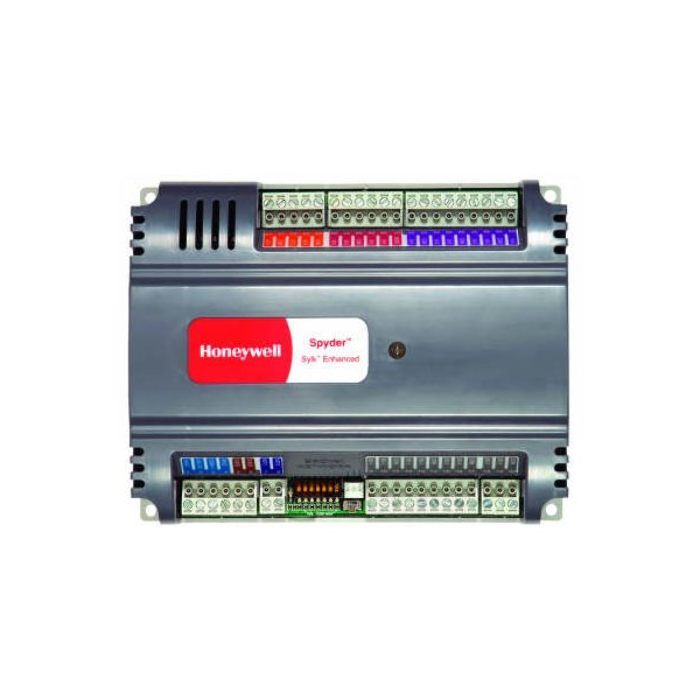

PUB6438S/U | Honeywell | BAS Controllers
Spyder Controller BACnet Programmable, 6 Universal/4 Digital Inputs, 3 Analog/8 Digital Outputs
PUB6438S/U is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
No Cost for orders over $50
Delivery
In stock (52 units)
Usually ships next day
FREE SHIPPING
Account approval required to view pricing and purchase this product
Request accessAlready authorized? Sign in to your account.
Couldn't load pickup availability
Description
SPYDER (BACnet) WITH SENSOR BUS - PROGRAMMABLE UNITARY CONTROLLER
Product Specifications
| Name | Value |
|---|---|
| Application | Unitary HVAC Equipment |
| Communication interface | RS-485 |
| Communication protocol | BACnet MS/TP |
| Configuration | Sylk Compatible |
| Depth | 2.26 in |
| Data Sheet | Download |
| Height | 5.45 |
| Humidity range | 5% - 95% non-condensing |
| Inputs | 6 Universal Input 4 Digital Input |
| Length | 2.26 |
| Maximum operating temperature | 150°F |
| Outputs | 3 Analog Output 8 Digital Output |
| Power supply | 20 - 30 VAC |
| Product category | BAS Controllers |
| Product subcategory | Programmable Controllers |
| Programmable | true |
| Series | Spyder |
| Short desc | Spyder Controller BACnet Programmable, 6 Universal/4 Digital Inputs, 3 Analog/8 Digital Outputs |
| Supplier part number | PUB6438S/U |
| Temperature range | -40°F - 150°F |
| Type | Unitary Controller |
| Voltage | 20 - 30 VAC |
| Web eligible | Y |
| Width | 6.85 |
Features and Benefits
{'Features_and_Benefits_1': 'EIA-485 Communications Network Capable of Baud Rates Between 96 and 1152 kbits/s', 'Features_and_Benefits_2': 'Support for up to 40 Controllers Per BACnet MS/TP Segment (Under 30 is Recommended)', 'Features_and_Benefits_3': 'Function Block Engine, Which Allows the Application Designer to Program the Controller to Perform a Wide Variety of HVAC Applications', 'Features_and_Benefits_4': 'Both Controller Housing and Actuator are UL Plenum Rated'}
