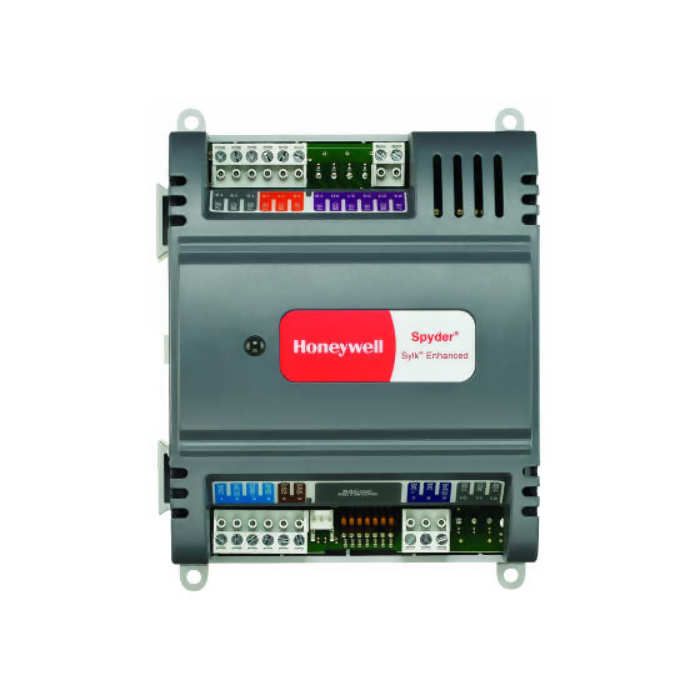

PUB1012S/U | Honeywell | BAS Controllers
PUB1012S/U is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
Delivery
Usually ships next day
Account approval required to view pricing and purchase this product
Request accessAlready authorized? Sign in to your account.
Couldn't load pickup availability
Description
Spyder® BACnet® PUB programmable controllers are designed to control HVAC equipment. These controllers provide many options and advanced system features that allow state-of-the-art commercial building control. Each controller is programmable and configurable through software. These controllers are for use in Variable Air Volume (VAV), Unitary, and advanced HVAC applications. Each controller has flexible, universal inputs for external sensors, digital inputs, and a combination of analog and digital Triac outputs.
Product Specifications
| Name | Value |
|---|---|
| Application | Unitary HVAC Equipment |
| Communication interface | RS-485 |
| Communication protocol | BACnet MS/TP |
| Configuration | Sylk Compatible |
| Depth | 2.26 in |
| Data Sheet | Download |
| Height | 6.25 |
| Humidity range | 5% - 95% non-condensing |
| Inputs | 1 Universal Input 0 Digital Input |
| Length | 2.26 |
| Maximum operating temperature | 150°F |
| Outputs | 1 Analog Output, 2 Digital Output |
| Power supply | 20-30 VAC |
| Product category | BAS Controllers |
| Product subcategory | Programmable Controllers |
| Programmable | true |
| Series | Spyder |
| Short desc | Spyder, Programmable Controller, Unitary, 1 UI 1 AO 2 DO, BACnet MS/TP, RS-485 |
| Supplier part number | PUB1012S/U |
| Temperature range | -40°F - 150°F |
| Type | Unitary Controller |
| Voltage | 20 - 30 VAC |
| Web eligible | Y |
| Width | 4.81 |
