Dampers & Actuators
| SKU:
MS8120F1002/U
58% off

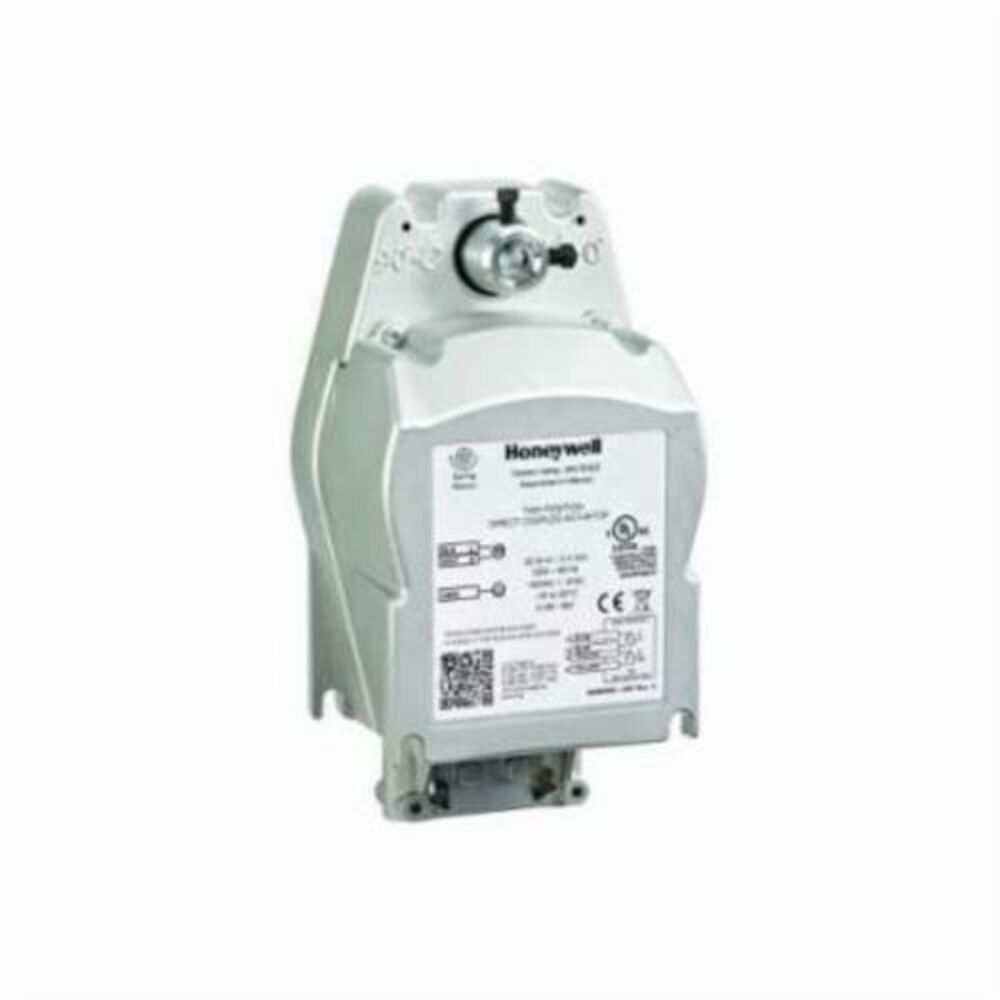

MS8120F1002/U | Honeywell | Dampers & Actuators
Damper Actuator, Fire and Smoke, Spring Return, 175 lb-in, 20 Nm,24 VAC, 2-position (SPST)
Retail Price
$687.53
Original Price
$1,636.30
Shipping calculated at checkout.
MS8120F1002/U is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
No Cost for orders over $50
Delivery
In stock (9 units)
Usually ships next day
FREE SHIPPING
Couldn't load pickup availability
Description
MS81 Spring Return Direct Coupled Actuators (DCA) are used within heating, ventilating, and air-conditioning (HVAC) systems. They can drive a variety of quarter-turn, final control elements requiring spring return fail-safe operation.
Product Specifications
| Name | Value |
|---|---|
| Configuration | No Aux Switches |
| Control type | On/Off (2-Position) |
| Data Sheet | Download |
| Installation Instructions | Download |
| Enclosure type | NEMA 2 |
| Fail safe | Spring Return |
| Height | 3.9 in |
| Length | 17.55 in |
| Power supply | 24 VAC |
| Product category | Dampers & Actuators |
| Product subcategory | Spring Return Damper Actuators |
| Rotation | 95 Deg |
| Running time | 15 Second |
| Short desc | Damper Actuator, Fire and Smoke, Spring Return, 175 lb-in, 20 Nm,24 VAC, 2-position (SPST) |
| Supplier part number | MS8120F1002/U |
| Torque | 175 in-lbs |
| Type | Rotary Damper Actuator - Fail-Safe |
| Upc | yorkland |
| Web eligible | Y |
| Width | 7.1 in |
Features and Benefits
{'Features_and_Benefits_1': 'Reversible Mounting Facilitates Use in either Clockwise (cw) or Counter Clockwise (ccw) Spring Rotation', 'Features_and_Benefits_2': 'Integral Spring Return Ensures Level of Return Torque', 'Features_and_Benefits_3': 'Stainless steel internal spring', 'Features_and_Benefits_4': 'No Special Cycling Required During Long-Term Holding', 'Features_and_Benefits_5': 'No Audible Noise During Holding', 'Features_and_Benefits_6': 'Actuator Holds Rated Torque at Reduced Power Level', 'Features_and_Benefits_7': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_8': 'Housing Design Allows Flush Mounting to Damper', 'Features_and_Benefits_9': 'Patented Self-Centering Shaft Adapter (SCSA)', 'Features_and_Benefits_10': 'Certifications: Designed to Operate Reliably in Smoke Control Systems Requiring Underwriter's Laboratories Inc. UL555S Ratings up to 350 deg F'}
