Dampers & Actuators
| SKU:
MS4620F1005/U
58% off

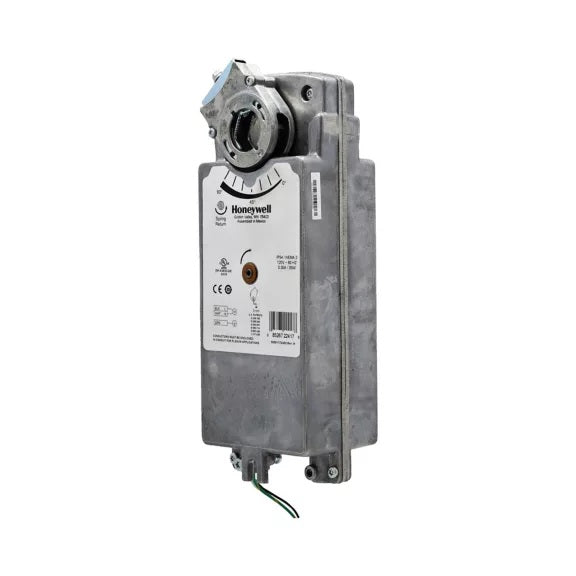

MS4620F1005/U | Honeywell | Dampers & Actuators
Fire and Smoke Actuator, Spring Return, 175 lbs-Inch, 20 Nm, 230 VAC, 2-Position (SPST)
Retail Price
$816.92
Original Price
$1,944.30
Shipping calculated at checkout.
MS4620F1005/U is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
No Cost for orders over $50
Delivery
Available to order
Lead time: 10 days
FREE SHIPPING
Couldn't load pickup availability
Description
The MS4620F Fast-Acting, Two-Position Actuators are spring return direct coupled actuators (DCA) for on/off damper control. The actuator accepts an on/off signal from a single-pole, single-throw (SPST) controller. Reversible mounting allows actuator to be used for either clockwise (cw) or counterclockwise (ccw) spring rotation.
Product Specifications
| Name | Value |
|---|---|
| Configuration | No Aux Switches |
| Control type | On/Off (2-Position) |
| Data Sheet | Download |
| Installation Instructions | Download |
| Enclosure type | NEMA 2 |
| Fail safe | Spring Return |
| Power supply | 230 VAC |
| Product category | Dampers & Actuators |
| Product subcategory | Fire & Smoke Actuators |
| Rotation | 95 Deg |
| Running time | 15 Second |
| Short desc | Fire and Smoke Actuator, Spring Return, 175 lbs-Inch, 20 Nm, 230 VAC, 2-Position (SPST) |
| Supplier part number | MS4620F1005/U |
| Torque | 175 in-lbs |
| Type | Rotary Damper Actuator - Fail-Safe |
| Upc | yorkland |
Features and Benefits
{'Features_and_Benefits_1': 'Reversible Mounting Facilitates Use in either Clockwise (cw) or Counter Clockwise (ccw) Spring Rotation', 'Features_and_Benefits_2': 'Integral Spring Return Ensures Level of Return Torque', 'Features_and_Benefits_3': 'Stainless steel internal spring', 'Features_and_Benefits_4': 'No Special Cycling Required During Long-Term Holding', 'Features_and_Benefits_5': 'No Audible Noise During Holding', 'Features_and_Benefits_6': 'Actuator Holds Rated Torque at Reduced Power Level', 'Features_and_Benefits_7': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_8': 'Housing Design Allows Flush Mounting to Damper', 'Features_and_Benefits_9': 'Patented Self-Centering Shaft Adapter (SCSA)', 'Features_and_Benefits_10': 'Certifications: Designed to Operate Reliably in Smoke Control Systems Requiring Underwriter's Laboratories Inc. UL555S Ratings up to 350 deg F'}
