Dampers & Actuators  | SKU: MS4609F1210/U

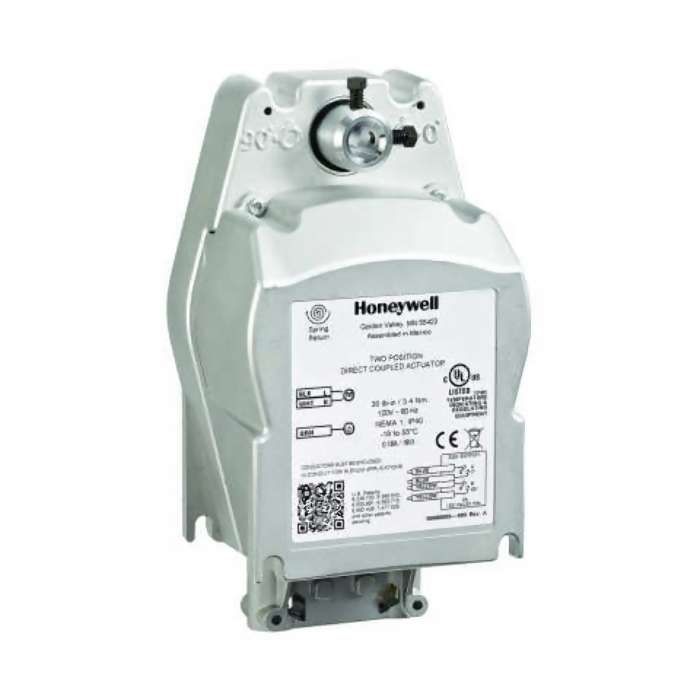

MS4609F1210/U | Honeywell | Dampers & Actuators

Actuator, 2-Position, Fast-Acting, 80 lbs-Inch, 230 VAC, Direct Coupled, Spring Return, IP40
$726.92 $1,730.10
Shipping calculated at checkout.

MS4609F1210/U is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

The MS4604 Fast-Acting, Two-Position Actuators are spring return direct coupled actuators (DCA) for Fire and Smoke dampers (on/off control). The actuator accepts an on/off signal from a single-pole, single-throw (SPST) controller. Reversible mounting allows actuator to be used for either clockwise (cw) or counterclockwise (ccw) spring rotation.

Product Specifications

Name Value
Category Damper
Configuration 2 Aux Switches
Control type On/Off (2-Position)
Data Sheet Download
Enclosure type NEMA 1
Fail safe Spring Return
Power supply 230 VAC
Product category Dampers & Actuators
Product subcategory Spring Return Damper Actuators
Rotation 95 Deg
Running time 15 Second
Short desc Actuator, 2-Position, Fast-Acting, 80 lbs-Inch, 230 VAC, Direct Coupled, Spring Return, IP40
Supplier part number MS4609F1210/U
Torque 80 in-lbs
Type Rotary Damper Actuator - Fail-Safe

Features and Benefits

{'Features_and_Benefits_1': 'Reversible Mounting Facilitates Use in either Clockwise (cw) or Counter Clockwise (ccw) Spring Rotation', 'Features_and_Benefits_10': "Certifications: Designed to Operate Reliably in Smoke Control Systems Requiring Underwriter's Laboratories Inc UL555S Ratings up to 350 deg F; Non-UL Marked Models Available", 'Features_and_Benefits_2': 'Integral Spring Return Ensures Level of Return Torque', 'Features_and_Benefits_3': '15-Second Spring Return Timing', 'Features_and_Benefits_4': 'No Special Cycling Required During Long-Term Holding', 'Features_and_Benefits_5': 'No Audible Noise During Holding', 'Features_and_Benefits_6': 'Patent Pending Design Eliminates Need for Limit Switches to Reduce Power Consumption', 'Features_and_Benefits_7': 'Actuator Holds Rated Torque at Reduced Power Level', 'Features_and_Benefits_8': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_9': 'Housing Design Allows Flush Mounting to Damper'}
