Dampers & Actuators  | SKU: MS4609F1010/U

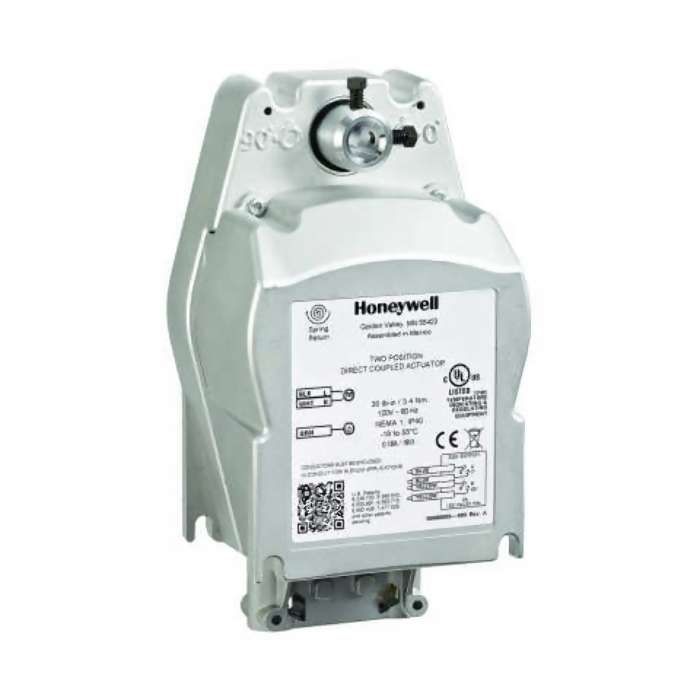

MS4609F1010/U | Honeywell | Dampers & Actuators

Actuator, 2-Position, Fast-Acting, 80 lbs-Inch, 230 VAC, Direct Coupled, Spring Return
$693.38 $1,650.25
Shipping calculated at checkout.

MS4609F1010/U is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

The MS4604 Fast-Acting, Two-Position Actuators are spring return direct coupled actuators (DCA) for Fire and Smoke dampers (on/off control). The actuator accepts an on/off signal from a single-pole, single-throw (SPST) controller. Reversible mounting allows actuator to be used for either clockwise (cw) or counterclockwise (ccw) spring rotation.

Product Specifications

Name Value
Category Damper
Configuration No Aux Switches
Control type On/Off (2-Position)
Data Sheet Download
Enclosure type NEMA 1
Fail safe Spring Return
Height 0.0
Length 0.0
Power supply 230 VAC
Product category Dampers & Actuators
Product subcategory Spring Return Damper Actuators
Rotation 95 Deg
Running time 15 Second
Short desc Actuator, 2-Position, Fast-Acting, 80 lbs-Inch, 230 VAC, Direct Coupled, Spring Return
Supplier part number MS4609F1010/U
Torque 80 in-lbs
Type Rotary Damper Actuator - Fail-Safe
Variant weight 0.1
Width 0.0

Features and Benefits

{'Features_and_Benefits_1': 'Reversible Mounting Facilitates Use in either Clockwise (cw) or Counter Clockwise (ccw) Spring Rotation', 'Features_and_Benefits_2': 'Integral Spring Return Ensures Level of Return Torque', 'Features_and_Benefits_3': '15-Second Spring Return Timing', 'Features_and_Benefits_4': 'No Special Cycling Required During Long-Term Holding', 'Features_and_Benefits_5': 'No Audible Noise During Holding', 'Features_and_Benefits_6': 'Patent Pending Design Eliminates Need for Limit Switches to Reduce Power Consumption', 'Features_and_Benefits_7': 'Actuator Holds Rated Torque at Reduced Power Level', 'Features_and_Benefits_8': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_9': 'Housing Design Allows Flush Mounting to Damper', 'Features_and_Benefits_10': 'Certifications: Designed to Operate Reliably in Smoke Control Systems Requiring Underwriter's Laboratories Inc UL555S Ratings up to 350 deg F; Non-UL Marked Models Available'}
