Dampers & Actuators
| SKU:
MS4604F1010/U
58% off

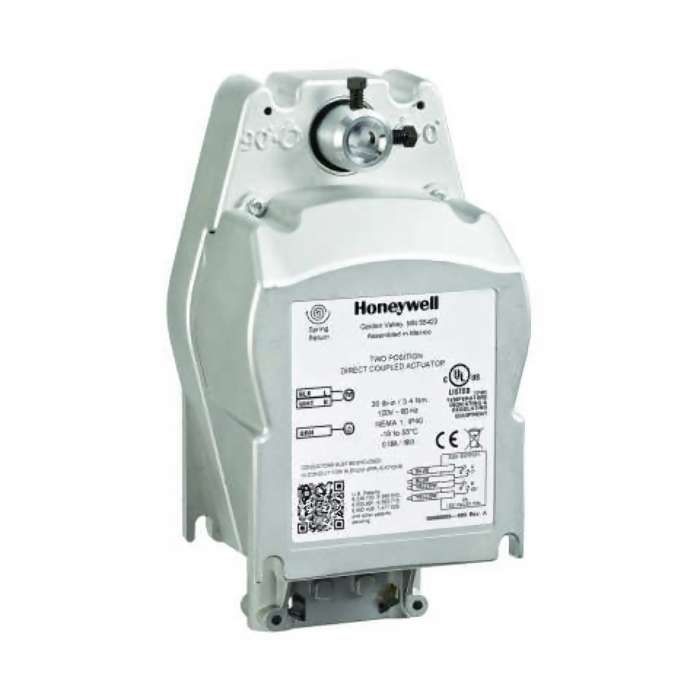

MS4604F1010/U | Honeywell | Dampers & Actuators
Direct Coupled Actuator, Spring Return, 30 lbs-Inch, 230 VAC, 2-Position (SPST)
Retail Price
$473.43
Original Price
$1,126.78
Shipping calculated at checkout.
MS4604F1010/U is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
No Cost for orders over $50
Delivery
Available to order
Lead time: 10 days
FREE SHIPPING
Couldn't load pickup availability
Description
The MS4604 Fast-Acting, Two-Position Actuators are spring return direct coupled actuators (DCA) for Fire and Smoke dampers (on/off control). The actuator accepts an on/off signal from a single-pole, single-throw (SPST) controller. Reversible mounting allows actuator to be used for either clockwise (cw) or counterclockwise (ccw) spring rotation.
Product Specifications
| Name | Value |
|---|---|
| Ambient temperature | 0°F to 130°F |
| Configuration | No Aux Switches |
| Control type | On/Off (2-Position) |
| Depth | 3.25 in |
| Data Sheet | Download |
| Enclosure type | NEMA 1 |
| Fail safe | Spring Return |
| Height | 8.94 in |
| Power supply | 230 VAC |
| Product category | Dampers & Actuators |
| Product subcategory | Spring Return Damper Actuators |
| Rotation | 95 Deg |
| Running time | 45 Second |
| Running time fail safe | 45 Second |
| Short desc | Direct Coupled Actuator, Spring Return, 30 lbs-Inch, 230 VAC, 2-Position (SPST) |
| Supplier part number | MS4604F1010/U |
| Torque | 30 in-lbs |
| Type | Rotary Damper Actuator - Fail-Safe |
| Width | 5.13 in |
Features and Benefits
{'Features_and_Benefits_1': 'Reversible Mounting Facilitates Use in either Clockwise (cw) or Counter Clockwise (ccw) Spring Rotation', 'Features_and_Benefits_2': 'Integral Spring Return Ensures Level of Return Torque', 'Features_and_Benefits_3': '15-Second Spring Return Timing', 'Features_and_Benefits_4': 'No Special Cycling Required During Long-Term Holding', 'Features_and_Benefits_5': 'No Audible Noise During Holding', 'Features_and_Benefits_6': 'Patent Pending Design Eliminates Need for Limit Switches to Reduce Power Consumption', 'Features_and_Benefits_7': 'Actuator Holds Rated Torque at Reduced Power Level', 'Features_and_Benefits_8': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_9': 'Housing Design Allows Flush Mounting to Damper', 'Features_and_Benefits_10': 'Certifications: Designed to Operate Reliably in Smoke Control Systems Requiring Underwriter's Laboratories Inc UL555S Ratings up to 350 deg F; Non-UL Marked Models Available'}
