Dampers & Actuators
| SKU:
MN7510A2001/U
58% off

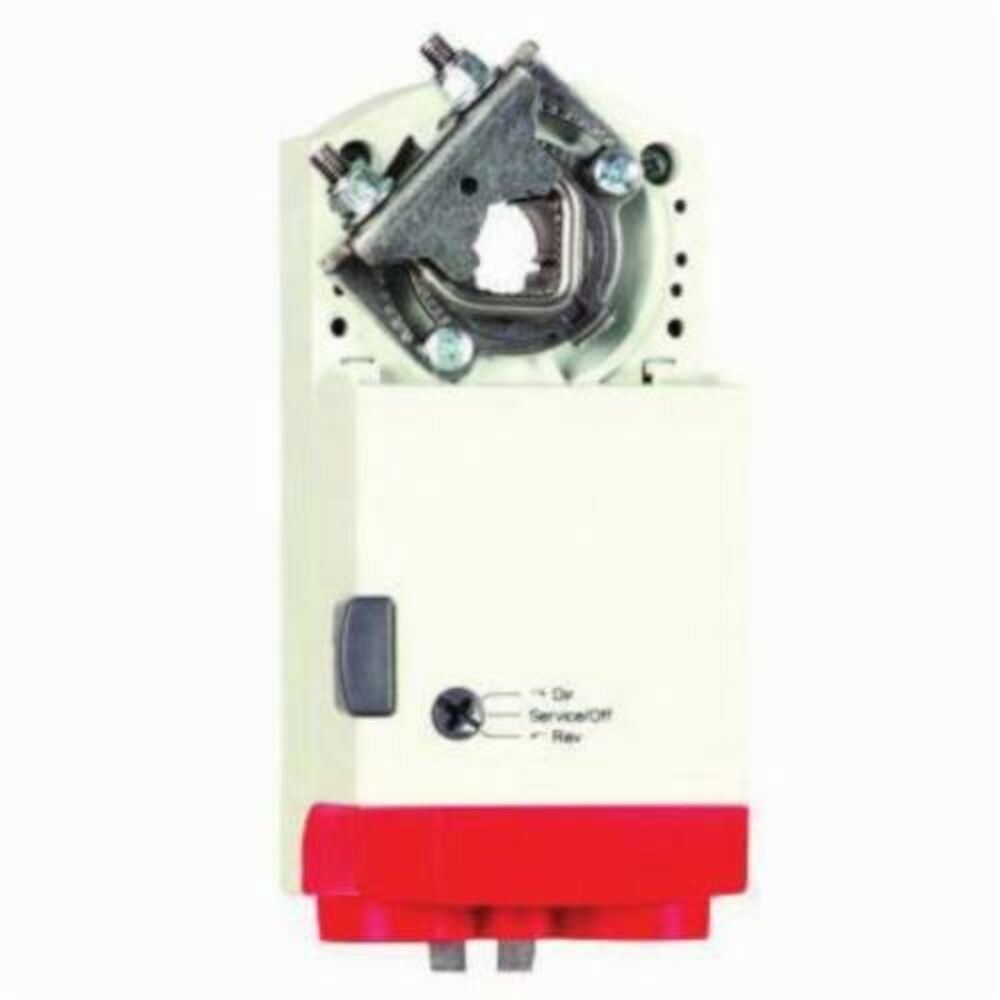

MN7510A2001/U | Honeywell | Dampers & Actuators
Damper Actuator, Direct Coupled, Non-Spring Return, 88 lb-in, 10 Nm, 24 VAC, Modulating (0/2-10 VDC), Floating
Retail Price
$309.95
Original Price
$737.67
Shipping calculated at checkout.
MN7510A2001/U is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
No Cost for orders over $50
Delivery
In stock (7 units)
Usually ships next day
FREE SHIPPING
Couldn't load pickup availability
Description
MN6110, MN7510 88 lb-in. (10 Nm), non-spring return, direct coupled, low voltage actuators that accepts adjustable modulating (0/2-10 Vdc) or on/off (SPDT) control are used within heating, ventilating, and air-conditioning (HVAC) systems. They can drive a variety of quarter-turn, final control elements for: air dampers, air handling units, ventilation flaps, louvers, and ball valves.
Product Specifications
| Name | Value |
|---|---|
| Ambient temperature | -5°F to 140°F |
| Configuration | No Aux Switches |
| Control type | Floating; SPDT; On/Off; (0) 2-10 Vdc (4-20 mA w/500 ohm resistor) |
| Depth | 2.44 in |
| Data Sheet | Download |
| Enclosure type | NEMA 2 |
| Fail safe | Non-Spring Return |
| Height | 5.28 in |
| Length | 8.25 in |
| Power supply | 24 VAC/VDC |
| Product category | Dampers & Actuators |
| Product subcategory | Non-Spring Return Damper Actuators |
| Rotation | 95 Deg |
| Running time | 95 S |
| Short desc | Damper Actuator, Direct Coupled, Non-Spring Return, 88 lb-in, 10 Nm, 24 VAC, Modulating (0/2-10 VDC), Floating |
| Supplier part number | MN7510A2001/U |
| Torque | 88 in-lbs |
| Type | Rotary Damper Actuator - Non-Fail Safe |
| Web eligible | Y |
| Width | 2.59 in |
Features and Benefits
{'Features_and_Benefits_1': 'Access Cover to Simplify Wiring', 'Features_and_Benefits_2': 'Declutch for Manual Adjustment', 'Features_and_Benefits_3': 'Mechanical End Limits'}
