Dampers & Actuators  | SKU: MN7220A2205

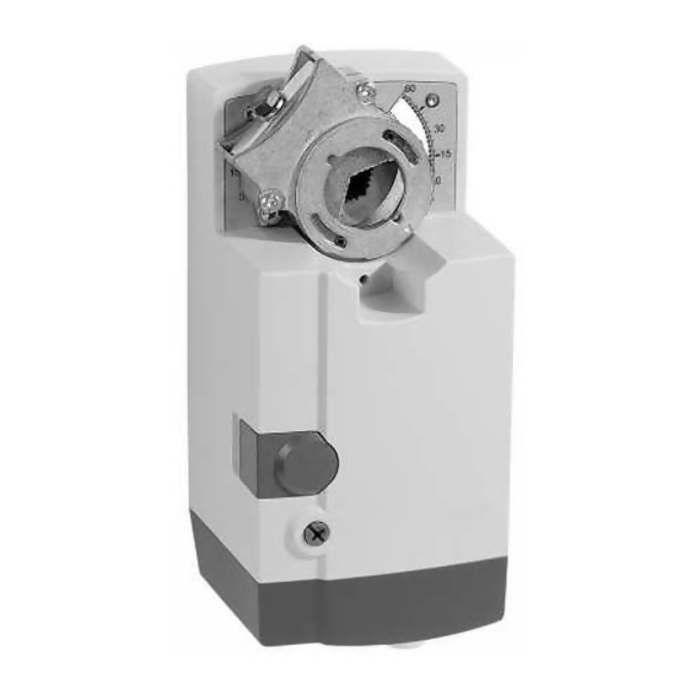

MN7220A2205 | Honeywell | Dampers & Actuators

Direct Coupled Actuator, Non-Spring Return, 175 lbs-Inch, 20 Nm, 24 VAC, Modulating (02-10 VDC), Standard U.S. Model, Voltage Feedback Signal, 2 End Switches
$569.29 $1,354.92
Shipping calculated at checkout.

Delivery

In stock (3 units)

Usually ships next day

FREE SHIPPING

Description

MN6120, MN7220 175 lb-in. (20 Nm), non-spring return, direct coupled, low voltage actuators that accepts adjustable modulating (0/2-10 Vdc) control are used within heating, ventilating, and air conditioning (HVAC) systems. They can drive a variety of quarter turn, final control elements for: air dampers, air handling units, ventilation flaps, louvers, and ball valves

Product Specifications

Name Value
Category Damper
Configuration 2 Aux Switches
Control type (0) 2-10 VDC (4-20 mA w/500 Ohm Resistor)
Data Sheet Download
Enclosure type NEMA 2
Fail safe Non-Spring Return
Height 0.0
Length 0.0
Power supply 24 VAC
Product category Dampers & Actuators
Product subcategory Non-Spring Return Damper Actuators
Rotation 95 Deg
Running time 95 Second
Running time fail safe 95 Second (Time Unit)
Short desc Direct Coupled Actuator, Non-Spring Return, 175 lbs-Inch, 20 Nm, 24 VAC, Modulating (02-10 VDC), Standard U.S. Model, Voltage Feedback Signal, 2 End Switches
Supplier part number MN7220A2205
Torque 175 in-lbs
Type Rotary Damper Actuator - Non-Fail Safe
Variant weight 0.0
Width 0.0

Features and Benefits

{'Features_and_Benefits_1': 'Self-Centering Shaft Adapter', 'Features_and_Benefits_2': 'Access Cover to Simplify Wiring', 'Features_and_Benefits_3': 'Declutch for Manual Adjustment', 'Features_and_Benefits_4': 'Mechanical Stroke Limits (MN6120/MN7220 Only)', 'Features_and_Benefits_5': 'Internal Auxiliary Switches (MN6120/MN7220 Only)', 'Features_and_Benefits_6': 'Rotation Direction Selectable by Switch', 'Features_and_Benefits_7': 'Mountable in Any Orientation (No IP54 if Upside Down)', 'Features_and_Benefits_8': 'Mechanical Position Indicator', 'Features_and_Benefits_9': 'UL/cUL; UL873, File Number E4436; Guide Number XAPX; CE; C-TICK; UL94 Plenum Rating'}
