Dampers & Actuators | SKU: MN6120A1002

MN6120A1002 | Honeywell | Dampers & Actuators

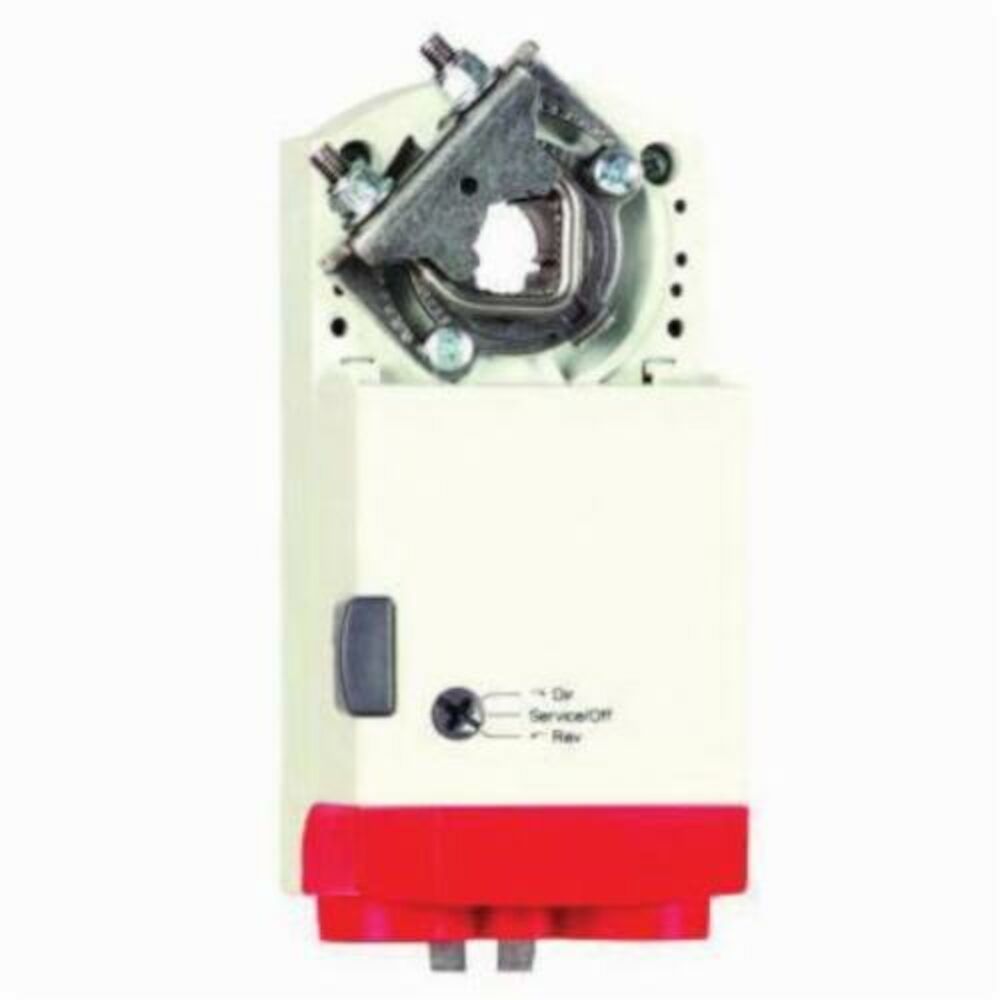

Name: MN6120A1002
Brand: Honeywell
SKU: HWI-MN6120A1002
Price: 439.88 USD
Availability: InStock

Damper Actuator, Direct Coupled, Non-Spring Return, 175 lb-in, 20 Nm,24 VAC, Floating, 2-position (SPDT)

$439.88 $1,046.93

Shipping calculated at checkout.

Available to order

Lead time: 5 days

FREE SHIPPING

Description

MN6120, MN7220 175 lb-in. (20 Nm), non-spring return, direct coupled, low voltage actuators that accepts adjustable modulating (0/2-10 Vdc) control are used within heating, ventilating, and air conditioning (HVAC) systems. They can drive a variety of quarter turn, final control elements for: air dampers, air handling units, ventilation flaps, louvers, and ball valves

Product Specifications

Name	Value
Ambient temperature	-5°F to 140°F
Configuration	No Aux Switches
Control type	On/Off (2-Position)
Depth	3.94 in
Data Sheet	Download
Enclosure type	NEMA 2
Fail safe	Non-Spring Return
Height	8.78 in
Length	0.0
Power supply	24 VAC
Product category	Dampers & Actuators
Product subcategory	Non-Spring Return Damper Actuators
Rotation	95 Deg
Running time	95 S
Short desc	Damper Actuator, Direct Coupled, Non-Spring Return, 175 lb-in, 20 Nm,24 VAC, Floating, 2-position (SPDT)
Supplier part number	MN6120A1002
Torque	175 in-lbs
Type	Rotary Damper Actuator - Non-Fail Safe
Web eligible	Y
Width	3.63 in

Features and Benefits

{'Features_and_Benefits_1': 'Self-centering shaft adapter', 'Features_and_Benefits_2': 'Access cover for easier wiring', 'Features_and_Benefits_3': 'Declutch for manual adjustment', 'Features_and_Benefits_4': 'Field-installable auxiliary switches', 'Features_and_Benefits_5': 'Rotation direction selectable by switch', 'Features_and_Benefits_6': 'Mountable in any orientation', 'Features_and_Benefits_7': 'Mechanical position indicator', 'Features_and_Benefits_8': 'Mechanical end limits on MN6120 models'}
