Control Valves & Actuators  | SKU: ML7984A4009/U

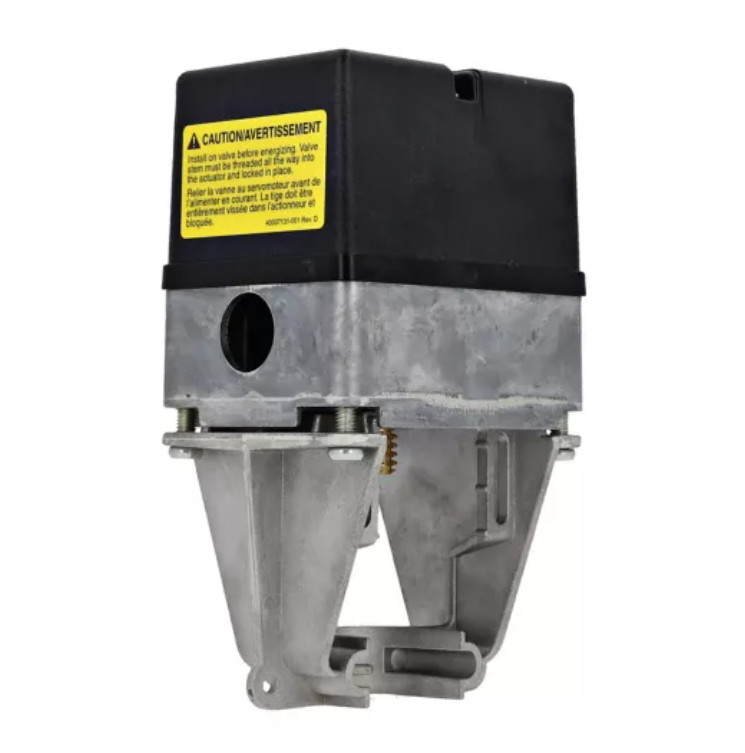

ML7984A4009/U | Honeywell | Control Valves & Actuators

Linear Valve Actuator, Non-Spring Return, Modulating, 2-10 VDC, 4-20 mA, 135 Ohm, 24 VAC, 160 lbf, 710 N
$492.60 $1,172.41
Shipping calculated at checkout.

Delivery

In stock (41 units)

Usually ships next day

FREE SHIPPING

Description

The ML7984 is self-contained, self-adjusting, motorized valve actuators that mount directly onto V5011 two way and V5013 three-way globe valves, providing linear stem operation between 1/2 Inch (13mm) and 1 Inch (25mm). ML7984 is for use with Series 70 0-10 VDC, 2-10 VDC, 4-20 mA; electronic Series 90 "SuperMod"; and 135 ohm modulating controllers.

Product Specifications

Name Value
Category Valve
Control type 2 to 10 VDC, SuperMod, 135 Ohm Potentiometer; 4 to 20mA
Data Sheet Download
Fail safe Stays-In-Place
Height 0.0
Length 0.0
Power supply 24 VAC
Product category Control Valves & Actuators
Product subcategory Spring Return Valve Actuators
Rotation 1/2 - 1 Inch Stroke (13 - 25mm)
Series Honeywell
Short desc Linear Valve Actuator, Non-Spring Return, Modulating, 2-10 VDC, 4-20 mA, 135 Ohm, 24 VAC, 160 lbf, 710 N
Supplier part number ML7984A4009/U
Torque 160 in-lbs (710 Nm)
Type Linear Electric Valve Actuator
Variant weight 0.1
Width 0.0

Features and Benefits

{'Features_and_Benefits_1': 'Self-Contained, Motorized Globe Valve Linkage', 'Features_and_Benefits_2': 'Microprocessor-Based Digital Position Sensing and Motor Control for Accurate Positioning', 'Features_and_Benefits_3': 'Compact Size for Easy Installation in Confined Spaces', 'Features_and_Benefits_4': 'NEMA 3R Rain-Proof Cover for Outdoor Installation', 'Features_and_Benefits_5': 'Self-Calibrating for Valve Stroke from 1/2 Inch (13 Mm) to 1 Inch (25 Mm)', 'Features_and_Benefits_6': 'DIP Switch Input Configuration Selection', 'Features_and_Benefits_7': 'LED (Light-Emitting Diode) Status Indication', 'Features_and_Benefits_8': 'Configurable to 3-Wire Mode for Floating Models', 'Features_and_Benefits_9': '710 N 160 Lbf (712 N) Valve Closing Force', 'Features_and_Benefits_10': 'Usable with Common Transformer Power Supply for Multiple Actuators and Controllers'}
