Dampers & Actuators  | SKU: ML6161C2007/U

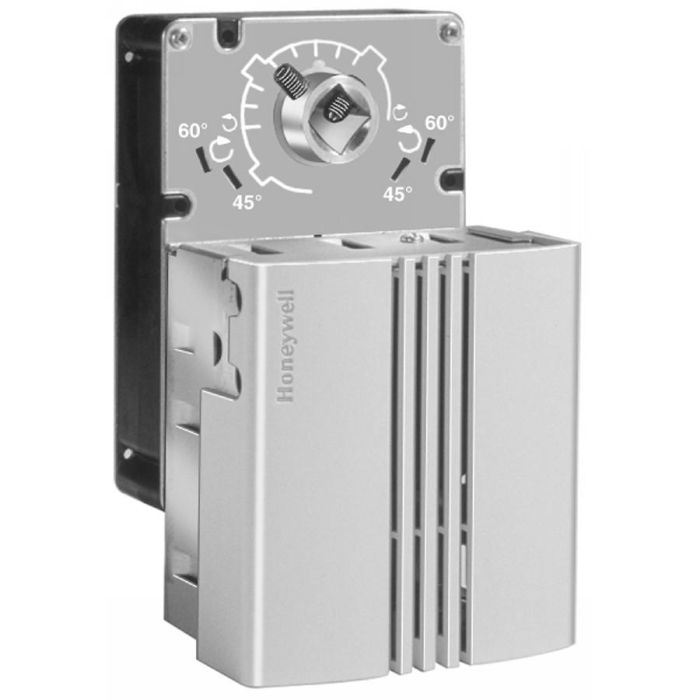

ML6161C2007/U | Honeywell | Dampers & Actuators

Direct Coupled Actuator, 35 lbs-Inch, Non-Spring Return, 24 VAC, Floating, SPDT
$217.28 $517.13
Shipping calculated at checkout.

ML6161C2007/U is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

ML6161 35 lb-in. (4 Nm) and ML6174 70 lb-in. (8 Nm) Non-Spring Return Direct Coupled Actuators (DCA) are control actuators that provide floating control for valves and dampers.

Product Specifications

Name Value
Category Damper
Configuration Output for Feedback Potentiometer, Cover
Control type Floating/3-Point
Data Sheet Download
Fail safe Non-Spring Return
Product category Dampers & Actuators
Product subcategory Spring Return Damper Actuators
Rotation 45/60/90 Deg.
Running time 90 Second
Short desc Direct Coupled Actuator, 35 lbs-Inch, Non-Spring Return, 24 VAC, Floating, SPDT
Supplier part number ML6161C2007/U
Torque 35 in-lbs
Type Rotary Damper Actuator - Non-Fail Safe

Features and Benefits

{'Features_and_Benefits_1': 'Selectable 45, 60, or 90 deg Stroke in Both Clockwise (CW) or Counter Clockwise (CCW) Directions', 'Features_and_Benefits_2': '0 to 30 deg Minimum Position Adjustment (CW or CCW Direction) on All Models', 'Features_and_Benefits_3': 'Magnetic Coupling Eliminates the Need for Mechanical Stops', 'Features_and_Benefits_4': 'Auxiliary Feedback Potentiometer Field-Addable on Select Models', 'Features_and_Benefits_5': 'Manual Declutch on All Models', 'Features_and_Benefits_6': 'Superior A/C Synchronous Sub Motor for Consistent Timing and Long Life', 'Features_and_Benefits_7': 'Certifications: UL: File Number E4436; Guide Number XAPX2; UL94-5V: Meets Plenum Requirements; CSA'}
