Dampers & Actuators  | SKU: M9174B1027/U

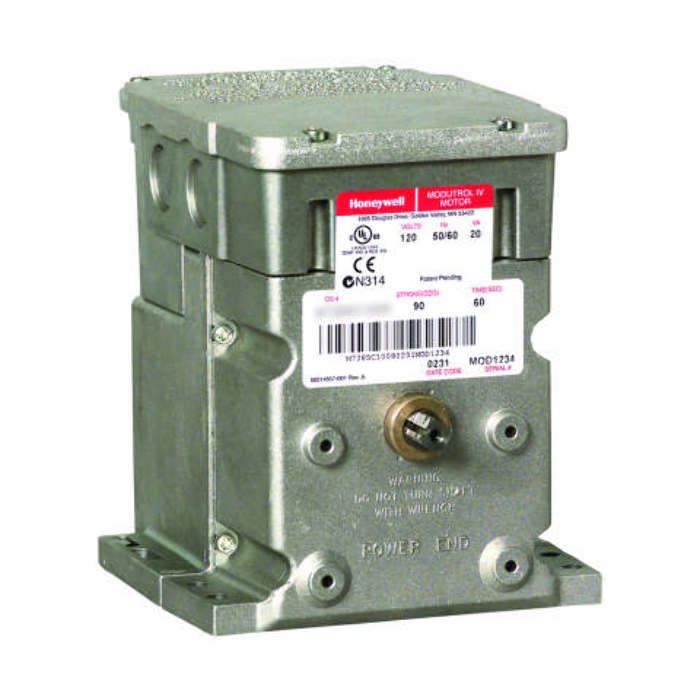

M9174B1027/U | CHAS.F.CONNOLLY DIST.CO | HONEYWELL ACTUATOR

Honeywell Series 90 Modutrol IV Motor, Non-Spring Return, 75 lbs-Inch, 120 VAC, Proportional (135 Ohm), Adjustable 90-160 deg, 30-60 Seconds, 1x Auxiliary Switch M9174B1027/U
$1,427.59 $3,047.85
Shipping calculated at checkout.

M9174B1027/U | CHAS.F.CONNOLLY DIST.CO | HONEYWELL ACTUATOR is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock

Usually ships next day

Calculated at checkout
Save Product

Description

Series 90 Modutrol IV Motors are non-spring return modulating proportional control motors. These motors are used with controllers that provide a Series 90 output to operate dampers or valves.

Product Specifications

Name Value
Application Damper
Category Foot Mount
Description Series 90 Modutrol IV Motors are non-spring return modulating proportional control motors. These motors are used with controllers that provide a Series 90 output to operate dampers or valves.
Data Sheet Download PDF
Display name 1 Data Sheet
Display name 2 Installation Instructions
Features and benefits {'Features_and_Benefits_1': 'Replaces M934A/D, M941, M944A/C/D, M945A/D/F, M954, M965, and M975 Motors', 'Features_and_Benefits_10': 'Certifications: UL Listed: File Number ED4436, Guide Number XAPX; CSA Certified: General Listing File Number LR1620, Guide 400-E', 'Features_and_Benefits_2': 'Integral Junction Box Provides NEMA 3 Weather Protection', 'Features_and_Benefits_3': 'Models Available with Factory Installed Transformer, or a Field Added Internal Transformer', 'Features_and_Benefits_4': 'Quick Connect Terminals are Standard - Screw Terminal Adapter is Available', 'Features_and_Benefits_5': 'Adapter Bracket for Matching Shaft Height of Older Motors is Available', 'Features_and_Benefits_6': 'Motors have Field Adjustable Stroke (90 deg to 160 deg)', 'Features_and_Benefits_7': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_8': 'Integral Auxiliary Switches are Available Factory Mounted, or Can be Field Added', 'Features_and_Benefits_9': 'Nominal Timing Standard of 30 Seconds (90 deg Stroke), and 60 Seconds (160 deg Stroke); Other Timings Available'}
P21 delete flag false
Power supply 120 VAC
Product category Dampers & Actuators
Product subcategory Non-Spring Return Damper Actuators
Restricted class id NULL
Restricted item false
Rotation CW
Running time 30-60 Second
Series Honeywell
Short desc Honeywell Series 90 Modutrol IV Motor, Non-Spring Return, 75 lbs-Inch, 120 VAC, Proportional (135 Ohm), Adjustable 90-160 deg, 30-60 Seconds, 1x Auxiliary Switch M9174B1027/U
Sku HWI-M9174B1027U
Supplier part number M9174B1027/U
Torque 75 lbs-Inch
Type Non-Spring Return
Ultra store sync us Yes
Upc yorkland
Vendor active Y
Vendor enabled true
Yorkland id M9174B1027/U

Features and Benefits

{'Features_and_Benefits_1': 'Replaces M934A/D, M941, M944A/C/D, M945A/D/F, M954, M965, and M975 Motors', 'Features_and_Benefits_10': 'Certifications: UL Listed: File Number ED4436, Guide Number XAPX; CSA Certified: General Listing File Number LR1620, Guide 400-E', 'Features_and_Benefits_2': 'Integral Junction Box Provides NEMA 3 Weather Protection', 'Features_and_Benefits_3': 'Models Available with Factory Installed Transformer, or a Field Added Internal Transformer', 'Features_and_Benefits_4': 'Quick Connect Terminals are Standard - Screw Terminal Adapter is Available', 'Features_and_Benefits_5': 'Adapter Bracket for Matching Shaft Height of Older Motors is Available', 'Features_and_Benefits_6': 'Motors have Field Adjustable Stroke (90 deg to 160 deg)', 'Features_and_Benefits_7': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_8': 'Integral Auxiliary Switches are Available Factory Mounted, or Can be Field Added', 'Features_and_Benefits_9': 'Nominal Timing Standard of 30 Seconds (90 deg Stroke), and 60 Seconds (160 deg Stroke); Other Timings Available'}
