Dampers & Actuators  | SKU: M7294Q1007/U

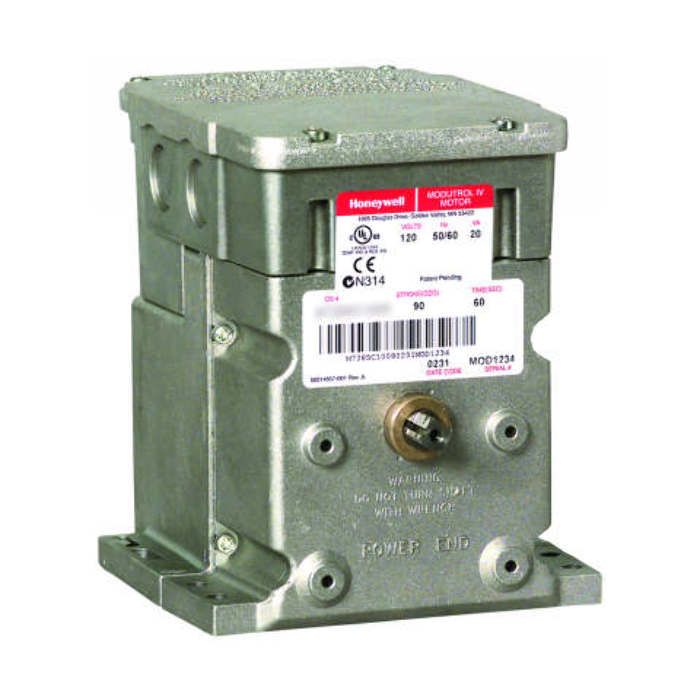

M7294Q1007/U | Honeywell | HONEYWELL MOD-4 MOTOR 300#

Honeywell Modutrol IV Motor Actuator, Non-Spring Return, 300 lbs-Inch, 120 VAC, Modulating (4-20 mA), Adjustable 90-160 deg, 60-120 Seconds M7294Q1007/U
$3,592.50 $5,678.90
Shipping calculated at checkout.

M7294Q1007/U | Honeywell | HONEYWELL MOD-4 MOTOR 300# is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock

Usually ships next day

Calculated at checkout
Save Product

Description

Series 72 Modutrol IV Motors are non-spring return motors used to control dampers and valves. The motors accept a current or voltage signal from an electronic controller to position a damper or valve.

Product Specifications

Name Value
Application Damper
Category Foot Mount
Control type Modulating (4-20 mA)
Description Series 72 Modutrol IV Motors are non-spring return motors used to control dampers and valves. The motors accept a current or voltage signal from an electronic controller to position a damper or valve.
Data Sheet Download PDF
Display name 1 Data Sheet
Display name 2 Installation Instructions
Features and benefits {'Features_and_Benefits_1': 'Replaces M734H/J, M744ST/Y and M745L/S/T/Y Motors', 'Features_and_Benefits_2': 'Integral Junction Box Provides NEMA 3 Weather Protection', 'Features_and_Benefits_3': 'Motor and Circuitry Operate from 24 VAC; Models Available with Factory Installed Transformer, or a Field Added Internal Transformer', 'Features_and_Benefits_4': 'Quick Connect Terminals are Standard - Screw Terminal Adapter is Available', 'Features_and_Benefits_5': 'Adapter Bracket for Matching Shaft Height of Older Motors is Available', 'Features_and_Benefits_6': 'Most Motors Have Field Adjustable Stroke (90 to 160 deg)', 'Features_and_Benefits_7': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_8': 'Integral Auxiliary Switches are Available Factory Mounted, or Can be Field Added', 'Features_and_Benefits_9': 'UL Listed: File Number E4436; Guide Number XAPX for USA and Canada'}
P21 delete flag false
Power supply 120 VAC
Product category Dampers & Actuators
Product subcategory Non-Spring Return Damper Actuators
Restricted class id NULL
Restricted item false
Rotation CW
Running time 60-120 Second
Series Honeywell
Short desc Honeywell Modutrol IV Motor Actuator, Non-Spring Return, 300 lbs-Inch, 120 VAC, Modulating (4-20 mA), Adjustable 90-160 deg, 60-120 Seconds M7294Q1007/U
Sku HWI-M7294Q1007U
Supplier part number M7294Q1007/U
Torque 300 lbs-Inch
Type Non-Spring Return
Ultra store sync us Yes
Vendor active Y

Features and Benefits

{'Features_and_Benefits_1': 'Replaces M734H/J, M744ST/Y and M745L/S/T/Y Motors', 'Features_and_Benefits_2': 'Integral Junction Box Provides NEMA 3 Weather Protection', 'Features_and_Benefits_3': 'Motor and Circuitry Operate from 24 VAC; Models Available with Factory Installed Transformer, or a Field Added Internal Transformer', 'Features_and_Benefits_4': 'Quick Connect Terminals are Standard - Screw Terminal Adapter is Available', 'Features_and_Benefits_5': 'Adapter Bracket for Matching Shaft Height of Older Motors is Available', 'Features_and_Benefits_6': 'Most Motors Have Field Adjustable Stroke (90 to 160 deg)', 'Features_and_Benefits_7': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_8': 'Integral Auxiliary Switches are Available Factory Mounted, or Can be Field Added', 'Features_and_Benefits_9': 'UL Listed: File Number E4436; Guide Number XAPX for USA and Canada'}
