Honeywell | SKU: E34-600800-J06-X-KIT

E34-600800-J06-X-KIT | Honeywell | Power Monitoring & Protection

Name: E34-600800-J06-X-KIT
Brand: Honeywell
SKU: HWI-E34600800J06XKIT
Price: 2632.65 USD
Availability: InStock

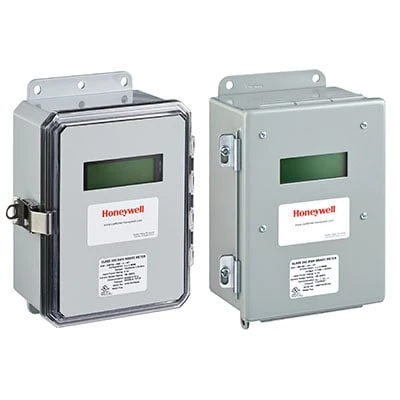

E-Mon Class 3400 Advanced kWh Demand Meter with Communication, Split-Core: Current Sensors with Expanded Feature, 800 A, 600 VAC, 3-Phase, JIC Steel Enclosure, Modbus RTU: Modbus TCP/IP

$2,632.65 $6,265.69

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The E-Mon Class 3400 Meter is a 3-Element Meter with Communications. The Device is Used to Monitor Electric Power Usage of Individual Loads After the Utility Meter and Store kW and kVAr Data for Automatic Meter Reading. The Class 3400 Meter is Dual Protocol Capable and Provides Both RS485 and Ethernet Communications. Installation Must Only be Performed by Qualified Personnel and in Accordance with These Instructions and All Applicable Local and National Electrical Codes. Honeywell and its Representatives Assume No Responsibility for Damages or Injury Resulting from the Improper Installation of This Meter.

Product Specifications

Name	Value
Amp rating	800 A
Application	3 Phase kWh/Demand Meter
Category	Power Meters
Data Sheet	Download
Enclosure type	Industrial Grade JIC Steel
Includes	Split-Core Current Sensors with Expanded Feature
Product category	Power Monitoring & Protection
Product subcategory	Power & Energy Meters
Series	E-Mon Class 3400
Short desc	E-Mon Class 3400 Advanced kWh Demand Meter with Communication, Split-Core: Current Sensors with Expanded Feature, 800 A, 600 VAC, 3-Phase, JIC Steel Enclosure, Modbus RTU: Modbus TCP/IP
Supplier part number	E34-600800-J06-X-KIT
Type	RS485 IP Smart Meter
Voltage	600 VAC

Features and Benefits

{'Features_and_Benefits_1': 'Advanced 4-Line Display', 'Features_and_Benefits_10': 'Built-in Communications - RS-485 and Ethernet', 'Features_and_Benefits_2': 'On-Board Set-up Option for IP Address, Meter Date/Time, Load Control Settings - ID Codes for EZ7, Modbus and BACnet', 'Features_and_Benefits_3': 'Protocols - Modbus RTU: Modbus TCP/IP', 'Features_and_Benefits_4': 'Expanded Feature Package Provides Additional Features: Load Control Option for Load Control/Shedding and Two External Meter Inputs (Water, Gas, BTU, Etc.) (Stored in Channels 5 and 6)', 'Features_and_Benefits_5': 'Two Pulse Outputs (One kWh and One kVArh)', 'Features_and_Benefits_6': '0-2 Volt Output Split-Core Current Sensors Allow for Enhanced Safety and Accurate Remote Mounting of Sensors up to 500 Feet from Meter without Power Interruption', 'Features_and_Benefits_7': 'Onboard Diagnostics and Verification System', 'Features_and_Benefits_8': 'Built-in RS-485 Communications Capability Supports up to 52 Class 3400 Meters and/or IDR Interval Recorders (or Combinations Not to Exceed 52 Devices Per Channel', 'Features_and_Benefits_9': 'Cabling can be Either Daisy-Chain or Star Configuration, 3-Conductor, 18-22 AWG, up to 4,000 Feet Cable Total Per Channel'}
