Honeywell  | SKU: E34-208800-R05KIT

E34-208800-R05KIT | Honeywell | Power Monitoring & Protection

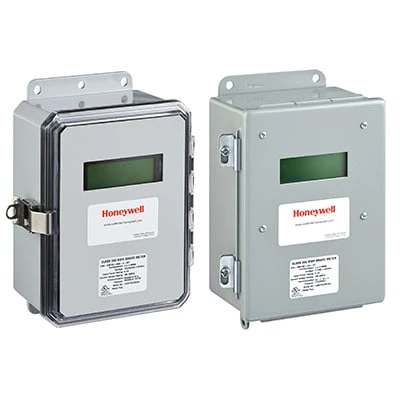

E-Mon Class 3400 Advanced kWh Demand Meter with Communication, Split-Core: Current Sensors, 800 A, 208 VAC, 3-Phase, NEMA 4X Raintight Enclosure, EZ7: BACnet IP
$2,226.42 $5,298.84
Shipping calculated at checkout.

E34-208800-R05KIT is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

The E-Mon Class 3400 Meter is a 3-Element Meter with Communications. The Device is Used to Monitor Electric Power Usage of Individual Loads After the Utility Meter and Store kW and kVAr Data for Automatic Meter Reading. The Class 3400 Meter is Dual Protocol Capable and Provides Both RS485 and Ethernet Communications. Installation Must Only be Performed by Qualified Personnel and in Accordance with These Instructions and All Applicable Local and National Electrical Codes. Honeywell and its Representatives Assume No Responsibility for Damages or Injury Resulting from the Improper Installation of This Meter.

Product Specifications

Name Value
Amp rating 800 A
Application 3 Phase kWh/Demand Meter
Category Power Meters
Data Sheet Download
Enclosure type NEMA 4X Polycarbonate Raintight Outdoor
Includes Split-Core Current Sensors
Product category Power Monitoring & Protection
Product subcategory Power & Energy Meters
Series E-Mon Class 3400
Short desc E-Mon Class 3400 Advanced kWh Demand Meter with Communication, Split-Core: Current Sensors, 800 A, 208 VAC, 3-Phase, NEMA 4X Raintight Enclosure, EZ7: BACnet IP
Supplier part number E34-208800-R05KIT
Type RS485 IP Smart Meter
Voltage 208 VAC

Features and Benefits

{'Features_and_Benefits_1': 'Advanced 4-Line Display', 'Features_and_Benefits_10': 'Records kWh and kVArh Delivered, kWh and kVArh Received in First 4 Channels', 'Features_and_Benefits_2': 'On-Board Set-up Option for IP Address, Meter Date/Time, Load Control Settings - ID Codes for EZ7, Modbus and BACnet', 'Features_and_Benefits_3': 'Protocols - EZ7: BACnet IP', 'Features_and_Benefits_4': 'Two Pulse Outputs (One kWh and One kVArh)', 'Features_and_Benefits_5': '0-2 Volt Output Split-Core Current Sensors Allow for Enhanced Safety and Accurate Remote Mounting of Sensors up to 500 Feet from Meter without Power Interruption', 'Features_and_Benefits_6': 'Onboard Diagnostics and Verification System', 'Features_and_Benefits_7': 'Built-in RS-485 Communications Capability Supports up to 52 Class 3400 Meters and/or IDR Interval Recorders (or Combinations Not to Exceed 52 Devices Per Channel', 'Features_and_Benefits_8': 'Cabling can be Either Daisy-Chain or Star Configuration, 3-Conductor, 18-22 AWG, up to 4,000 Feet Cable Total Per Channel', 'Features_and_Benefits_9': 'Built-in Communications - RS-485 and Ethernet'}
