Honeywell | SKU: E20-12025HVJ-G-KIT-NS

E20-12025HVJ-G-KIT-NS | Honeywell | Power Monitoring & Protection

Name: E20-12025HVJ-G-KIT-NS
Brand: Honeywell
SKU: HWI-E2012025HVJGKITNS
Price: 1634.47 USD
Availability: InStock

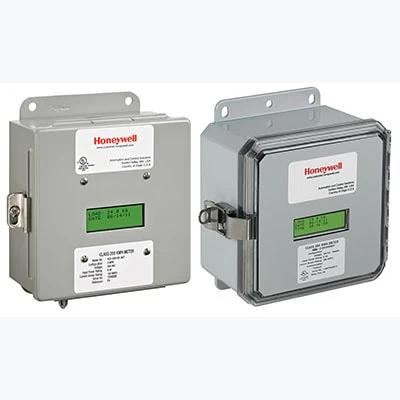

E-Mon Class 2000 Green Pulse Meter, 120 VAC, 25 A, High Voltage, JIC Steel Enclosure, (3) Split-Core: No 2 V Current Sensor

$1,634.47 $3,890.03

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

E-Mon Green Class 2000 Meters Display Cumulative kWh and Real-Time kW Load. In Addition, These Meters Allow the User to Enter Their Local Cost Per kWh to Provide Accurate to-Date Energy Costs and Projected Hourly Costs Based on the Metered Load. This Meter is Supplied Standard in a Green JIC Steel Enclosure and is Optionally Available in a Gray NEMA 4X Outdoor Enclosure or MMU Configuration for Installation in MMU (Multiple Meter Unit) Enclosures.

Product Specifications

Name	Value
Amp rating	25 A
Application	3-Phase kWh/kW Meter
Category	Power Meters
Data Sheet	Download
Enclosure type	Industrial Grade JIC Steel
Includes	(3) Split-Core: No 2 V Current Sensor
Product category	Power Monitoring & Protection
Product subcategory	Power & Energy Meters
Series	E-Mon Class 2000
Short desc	E-Mon Class 2000 Green Pulse Meter, 120 VAC, 25 A, High Voltage, JIC Steel Enclosure, (3) Split-Core: No 2 V Current Sensor
Supplier part number	E20-12025HVJ-G-KIT-NS
Type	Green Pulse Meter
Voltage	120 VAC

Features and Benefits

{'Features_and_Benefits_1': 'Direct-Read Two-Line Alpha-Numeric LCD Display without Multiplier Displays Cumulative kWh Peak Demand with Date and Time and "Real-Time" kW Load', 'Features_and_Benefits_10': 'Green Industrial Grade JIC Steel Enclosure (Standard)', 'Features_and_Benefits_2': 'User Entered Cost Per kWh Provides to-Date Energy Cost and Projected Hourly Cost Based on Metered Load', 'Features_and_Benefits_3': 'Displays Total Carbon (CO2) Emissions in Pounds (lbs.) and Indicates Hourly Emissions Based on Metered Load', 'Features_and_Benefits_4': 'Patented 0-2 Volt Output Split-Core Current Sensors Promote Enhanced Safety and Accurate Remote Mounting of Current Sensors up to 2,000 Feet from the Meter without Power Interruption', 'Features_and_Benefits_5': 'Onboard Installation Diagnostics and Verification System', 'Features_and_Benefits_6': 'Parallel up to Three (3) Sets of Current Sensors for Cumulative Reading', 'Features_and_Benefits_7': 'Non-Volatile Memory', 'Features_and_Benefits_8': 'Meter can be Used in the Following Configurations: 3-Phase, 4 Wire, 3-Phase, 3 Wire', 'Features_and_Benefits_9': 'Fixed-Value Pulse Output'}
