Burner/Boiler Controls  | SKU: 926710-00

926710-00 | Heat-Timer | Combustion & Flame Safety

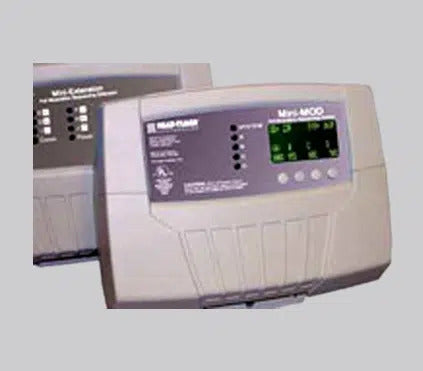

HeatTimer Mini-MOD Outdoor Reset Modulating Boiler Control with System Sensors
$2,026.32 $3,026.00
Shipping calculated at checkout.

926710-00 is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

Outdoor Reset Modulating Boiler Control. The Mini-Mod is an outdoor reset modulating boiler control. It is the perfect control whenever multiple fully modulating hot water boilers are used in building heating applications. The Mini-Mod controls the on/off and the modulation of each stage to maintain precise set point control using PID type control logic. Controls 0-5 V, 0-10 V, 1-5 V, 2-10 V, or 4-20 mA modulating motors.

Product Specifications

Name Value
Category Heating Control Systems
Data Sheet Download
Inv mast uid 120671
Product category Combustion & Flame Safety
Product subcategory Burner/Boiler Controls
Series Heat-Timer
Short desc HeatTimer Mini-MOD Outdoor Reset Modulating Boiler Control with System Sensors
Supplier part number 926710-00
Variant weight 0.1

Features and Benefits

{'Features_and_Benefits_1': 'RWB Mod Motor Output (0-5 V, 0-10 V, 1-5 V, 2-10 V, and 4-20 mA) and N.O. Contacts for Each Stage', 'Features_and_Benefits_2': 'Automatic or Manual Lead Stage Rotation', 'Features_and_Benefits_3': 'Manual Overrides for Each Stage', 'Features_and_Benefits_4': 'Display of Percent Modulation of Each Stage', 'Features_and_Benefits_5': 'Digital Display of - System Temperature, System Set Point, and Control Parameters', 'Features_and_Benefits_6': 'Can be Cascaded to Provide as Many Stages as Needed Using Up to Two Mini-Extension Panels (Each can Control Up to 6 Boilers) Up to a Total of 16 Boilers', 'Features_and_Benefits_7': 'The Option of Using Outdoor Reset, Set Point, or Receive an External Set Point From an EMS/BMS System AS 4-20Ma (Requires the use Of 4-20Ma EMS Interface)', 'Features_and_Benefits_8': 'Can be Field Configured for Remote Setback or Based on the Controls Day/Night Schedule', 'Features_and_Benefits_9': 'Domestic Hot Water Capability with Optional Priority', 'Features_and_Benefits_10': 'Built-in Outdoor Reset'}
