Enclosures | SKU: WF25LP

WF25LP | nVent Hoffman | Enclosures, Panels & Fabrication

Name: WF25LP
Brand: nVent Hoffman
SKU: HFE-WF25LP
Price: 4226.88 USD
Availability: InStock

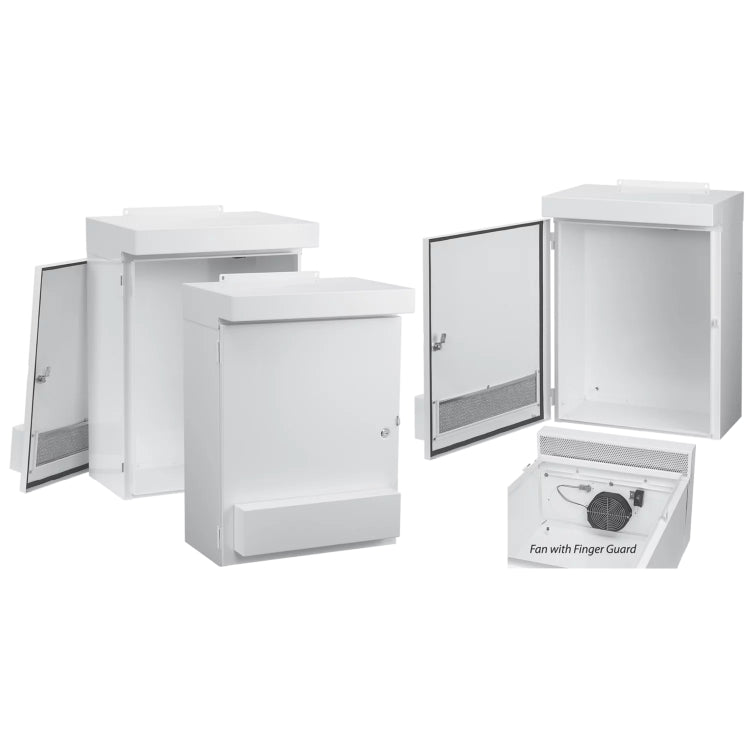

WeatherFlo Enclosure with Fan Type 3R, 41 x 24 x 12 Inch, White, Steel

$4,226.88

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

WeatherFlo Enclosures feature a forced-air ventilation system for cooling drives or other high-heat producing equipment in outdoor applications.

Product Specifications

Name	Value
Category	Metallic Enclosures
Color	Signal White
Depth	12 Inch
Data Sheet	Download
Enclosure nema rating	NEMA/EEMAC Type 3R
Finish	Galvanized, Powder Coated
Height	41 Inch
Material	Mild Steel
Mounting type	Wall Mount
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Series	WeatherFlo
Short desc	WeatherFlo Enclosure with Fan Type 3R, 41 x 24 x 12 Inch, White, Steel
Size	33 x 21 Inch
Supplier part number	WF25LP
Thickness	14 Gauge
Width	24 Inch

Features and Benefits

Gasketed Door with Lift-Off Hinge Design | External Enclosure Mounting Brackets Present | Easily Accessible and Washable Metal Filter | Adjustable Thermostat, 70-140 F (21-60 C) | Collar Studs Provided to Mount Optional Panel | Quarter-Turn Latch | Active Cooling Ventilation System with Factory-Installed Fan and Filter (115 VAC) | Integrated Solar Shield Top and Intake Cover | Terminal Power Connection for Fan | White Polyester Powder Finish With Low Solar Absorption
