Enclosures | SKU: CSD16166SS

CSD16166SS | nVent Hoffman | Enclosures, Panels & Fabrication

Name: CSD16166SS
Brand: nVent Hoffman
SKU: HFE-CSD16166SS
Price: 3434.47 USD
Availability: InStock

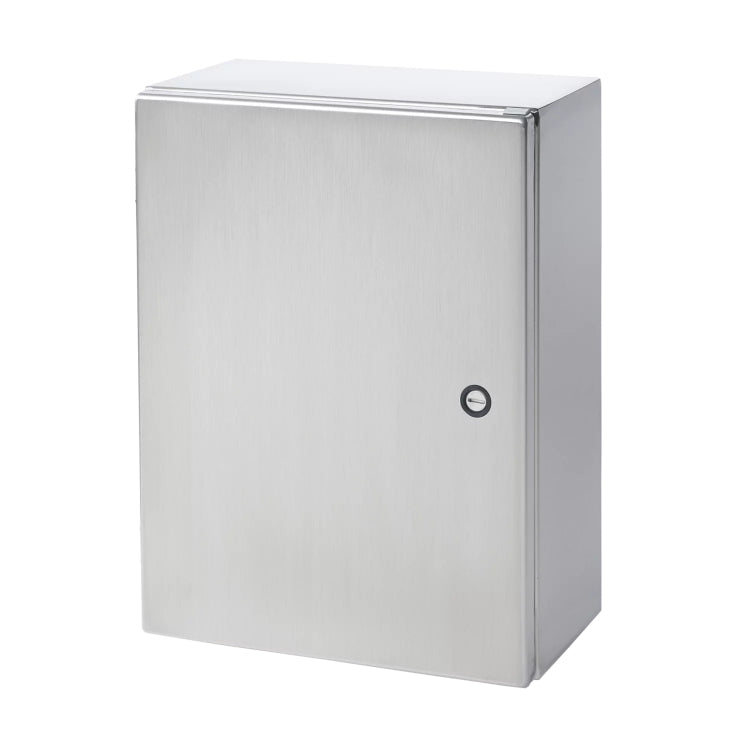

Concept Wallmount 1/4-Turn Latch Type 4X, 16x16x6, Brushed, Stainless 304

$3,434.47

Shipping calculated at checkout.

In stock (1 units)

Usually ships next day

FREE SHIPPING

Description

For indoor or outdoor applications that require corrosion protection from chemicals and water. Concept Enclosures feature streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure.

Product Specifications

Name	Value
Category	Metallic Enclosures
Closure method	1/4-Turn Latch
Color	Unpainted
Depth	6 Inch
Data Sheet	Download
Enclosure nema rating	NEMA/EEMAC Type 3R, 4, 4X, 12, 13, IP66
Finish	Brushed #4
Height	16 Inch
Material	Stainless Steel 304
Mounting type	Wall Mount
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Series	Concept
Short desc	Concept Wallmount 1/4-Turn Latch Type 4X, 16x16x6, Brushed, Stainless 304
Size	14.20 x 14.20 Inch
Supplier part number	CSD16166SS
Thickness	16 Gauge
Type	Wallmount Type 4X Enclosure
Width	16 Inch

Features and Benefits

{'Features_and_Benefits_1': 'Minimum-Width Body Flange Provides Maximum Body Opening', 'Features_and_Benefits_10': 'Seamless Foam-in-Place Gasket', 'Features_and_Benefits_2': 'External Formed 90-Degree Body Flange', 'Features_and_Benefits_3': 'Panel Mounting Studs Fit Optional Concept Panels and Other Accessories', 'Features_and_Benefits_4': 'Mounting Holes In Back of Body for Direct Mounting or for Optional External Mounting Brackets', 'Features_and_Benefits_5': 'Type 316 Stainless Steel Hidden Hinges Promote Clean Aesthetic Appearance', 'Features_and_Benefits_6': 'Corner Formed Doors are Interchangeable and Easily Removed By Pulling Clip-Style Hinge Pins', 'Features_and_Benefits_7': 'Provision on Door (Except When B = 12 Inch (305 Millimeter)) for Thermoplastic Data Pocket', 'Features_and_Benefits_8': 'Provision on Door (Except When B = 12 Inch (305 Millimeter)) for Optional Doorstop Kit', 'Features_and_Benefits_9': 'Quarter-Turn Latches Furnished with Flush Slotted Insert'}
