Enclosures
| SKU:
A90XD4020SSFTCLP
A90XD4020SSFTCLP | Hoffman Enclosures | Enclosures, Panels & Fabrication

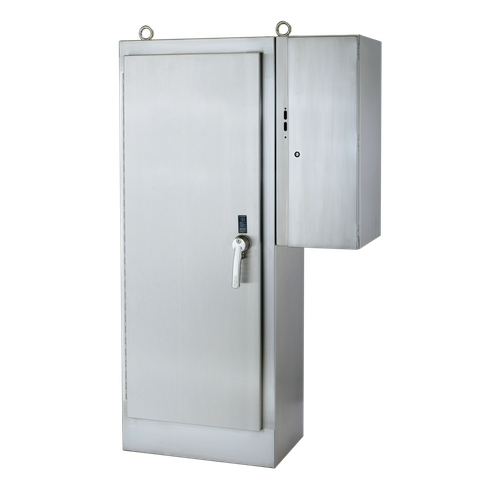

Sequestr, External Disconnect Package, 4X, 90x40x20, 1 Door, SS 304
Retail Price
$69,852.27
Shipping calculated at checkout.
A90XD4020SSFTCLP is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
No Cost for orders over $50
Delivery
Available to order
Lead time: 7 days
FREE SHIPPING
Couldn't load pickup availability
Description
The Stainless Steel Sequestr External Disconnect Enclosure package helps mitigate arc flash occurrences when working on interior components by isolating incoming power from the main enclosure. Manufactured from 304 stainless steel, it provides protection from non-corrosive or mildly corrosive elements in both indoor and outdoor environments. A package includes a main enclosure and a Sequestr box. Sequestr boxes can be ordered separately to retrofit existing enclosures. The disconnect switch and fuse block/circuit breaker are mounted in the external enclosures, with terminal connections to bring power to the main enclosure.
Product Specifications
| Name | Value |
|---|---|
| Closure method | 3-Point Latching |
| Color | Unpainted |
| Country of origin | US |
| Depth | 20.12 in |
| Data Sheet | Download |
| Installation Instructions | Download |
| Enclosure nema rating | NEMA/EEMAC Type 3R, 4, 4X, 12, IP66 |
| Finish | Brushed #4 |
| Gtin | 7.84E+11 |
| Height | 90.12 in |
| Material | Stainless Steel 304 |
| Mounting type | Free Standing |
| Product category | Enclosures, Panels & Fabrication |
| Product subcategory | Enclosures |
| Series | Sequestr |
| Short desc | Sequestr, External Disconnect Package, 4X, 90x40x20, 1 Door, SS 304 |
| Supplier part number | A90XD4020SSFTCLP |
| Thickness | 14 Gauge |
| Type | External Disconnect Package 1-Door Enclosure |
| Width | 40.25 in |
Features and Benefits
{'Features_and_Benefits_1': 'Package includes a main enclosure and a Sequestr box.', 'Features_and_Benefits_2': 'Main enclosure 12 gauge Type 304 stainless steel', 'Features_and_Benefits_3': 'Sequestr enclosure is 14 gauge Type 304 stainless steel', 'Features_and_Benefits_4': 'Seams continuously welded and ground smooth', 'Features_and_Benefits_5': 'Interlocks doors of main control cabinet when disconnect switch is powered ON', 'Features_and_Benefits_6': 'Mechanical interlock on main control enclosure activated by master door, preventing slave door from being opened first', 'Features_and_Benefits_7': 'Provision for pass-through power into the main enclosure', 'Features_and_Benefits_8': 'Preferred Disconnect cutout', 'Features_and_Benefits_9': 'Quarter-turn, screwdriver slot latch on Sequestr Enclosure', 'Features_and_Benefits_10': 'Heavy-duty 3-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle on all doors'}
