Enclosures | SKU: A84XD4EW18FTCLP

A84XD4EW18FTCLP | nVent Hoffman | Enclosures, Panels & Fabrication

Name: A84XD4EW18FTCLP
Brand: nVent Hoffman
SKU: HFE-A84XD4EW18FTCLP
Price: 36923.98 USD
Availability: InStock

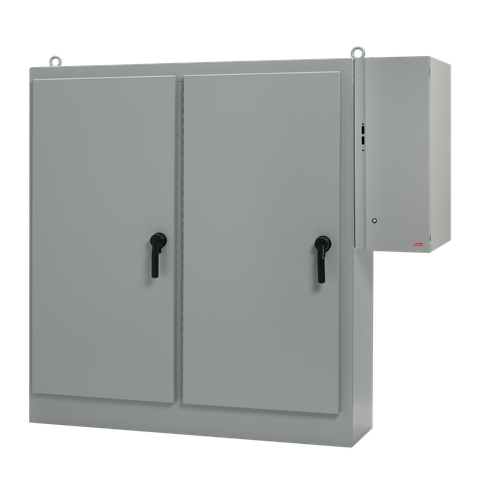

Sequestr External Disconnect Pkg Type 12, 84.12x158.00x18.12, Gray, Steel

$36,923.98

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The Sequestr External Disconnect Enclosure Package helps mitigate arc flash occurrences when working on interior components by isolating incoming power from the main enclosure. Shipped as one unit for new installations, the disconnect switch and fuse block/circuit breaker are mounted in the external enclosure, with terminal connections to bring power to the main enclosure.

Product Specifications

Name	Value
Category	Metallic Enclosures
Closure method	3-Point Latching
Color	Gray
Country of origin	MX
Depth	18.12 Inch
Data Sheet	Download
Enclosure nema rating	NEMA 12, IP55
Finish	Powder Coated
Gtin	00783510168728
Height	84.12 Inch
Material	Mild Steel
Mounting type	Free Standing
Product category	Enclosures, Panels & Fabrication
Product subcategory	Enclosures
Series	Sequestr
Short desc	Sequestr External Disconnect Pkg Type 12, 84.12x158.00x18.12, Gray, Steel
Supplier part number	A84XD4EW18FTCLP
Thickness	16 Gauge
Type	External Disconnect Package 4-Door Enclosure
Width	158 Inch

Features and Benefits

{'Features_and_Benefits_1': 'Interlocks doors of main control cabinet when disconnect switch is powered ON', 'Features_and_Benefits_10': 'Conductive back panel included in Sequestr External Disconnect Enclosure', 'Features_and_Benefits_2': 'Mechanical interlock on main control enclosure activated by master door prevents slave door from being opened first', 'Features_and_Benefits_3': 'Provision for pass-through power into the main enclosure', 'Features_and_Benefits_4': 'Preferred disconnect cutout', 'Features_and_Benefits_5': 'Quarter-turn, screwdriver slot latch on Sequestr Enclosure', 'Features_and_Benefits_6': 'Rugged PowerGlide Handle with three-point latch on main control enclosure', 'Features_and_Benefits_7': 'Concealed, easy-to-remove hinges', 'Features_and_Benefits_8': 'Grounding studs on body', 'Features_and_Benefits_9': 'Bonding provision on door'}
