Enclosures
| SKU:
A74H72DULP
A74H72DULP | Hoffman Enclosures | Enclosures, Panels & Fabrication

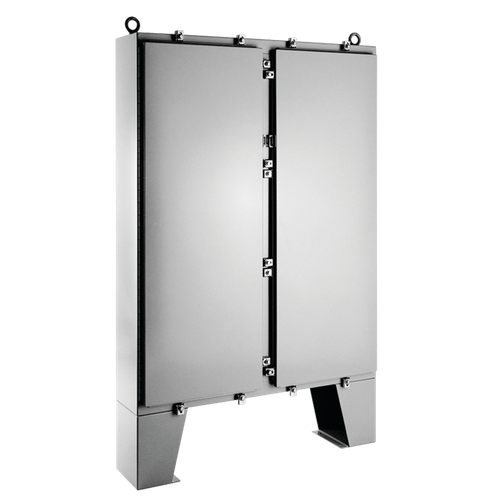

Two-Door with Floor Stands, Type 4, 74.06x72.06x12.06, Gray, Steel
Retail Price
$14,990.46
Shipping calculated at checkout.
A74H72DULP is backordered and will ship as soon as it is back in stock.
Local Availability
Checking In Store Availability
One moment...
In Store Pick Up
Delivery
Ship to Store
Get it as soon as Wednesday 10/15
No Cost for orders over $50
Delivery
Available to order
Lead time: 7 days
FREE SHIPPING
Couldn't load pickup availability
Description
The Type 4 rating and polyester powder coating make these enclosures ideal for outdoor environments or food processing applications where it is necessary to protect controls and instrumentation from wet, non-corrosive environments. Featuring a continuous hinge with clamps, the enclosures are supported by floor stands that provide additional height and access for cleaning under the enclosure. Equipment can be mounted on either panels or racks.
Product Specifications
| Name | Value |
|---|---|
| Closure method | Door Clamps |
| Color | Gray |
| Country of origin | MX |
| Depth | 12.06 in |
| Data Sheet | Download |
| Enclosure nema rating | NEMA/EEMAC Type 3, 4, 12, 13, IP66 |
| Finish | Powder Coated |
| Gtin | 7.84E+11 |
| Height | 74.06 in |
| Material | Steel |
| Mounting type | Free Standing |
| Product category | Enclosures, Panels & Fabrication |
| Product subcategory | Enclosures |
| Series | nVent Hoffman |
| Short desc | Two-Door with Floor Stands, Type 4, 74.06x72.06x12.06, Gray, Steel |
| Size | 24.00 in |
| Supplier part number | A74H72DULP |
| Thickness | 12 Gauge |
| Type | Free-Stand 2-Door Type 4 Enclosure |
| Width | 72.06 in |
Features and Benefits
{'Features_and_Benefits_1': 'Seams continuously welded and ground smooth', 'Features_and_Benefits_2': 'Body stiffeners for added strength', 'Features_and_Benefits_3': 'Removable centerpost permits easy panel installation', 'Features_and_Benefits_4': 'Panel supports', 'Features_and_Benefits_5': 'Return flange around three sides of door and along top of enclosure opening channels away liquids and contaminants', 'Features_and_Benefits_6': 'Stainless steel door clamps on three sides of each door assure water-tight seal', 'Features_and_Benefits_7': 'Heavy gauge continuous hinge with stainless steel hinge pin', 'Features_and_Benefits_8': 'Hasp and staple for padlock', 'Features_and_Benefits_9': 'Data pocket is high-impact thermoplastic', 'Features_and_Benefits_10': '12-in. floor stands welded to enclosure'}
